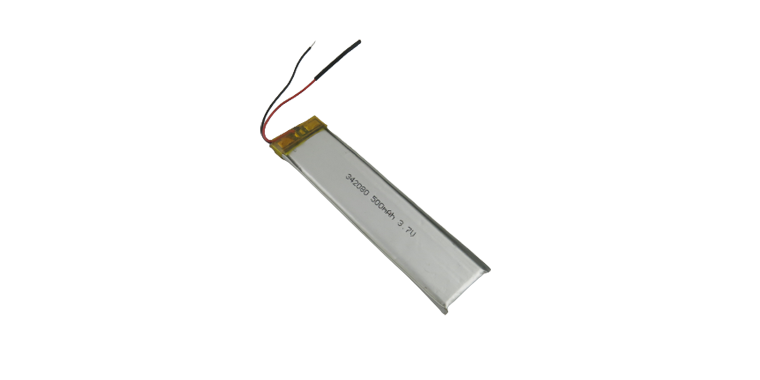

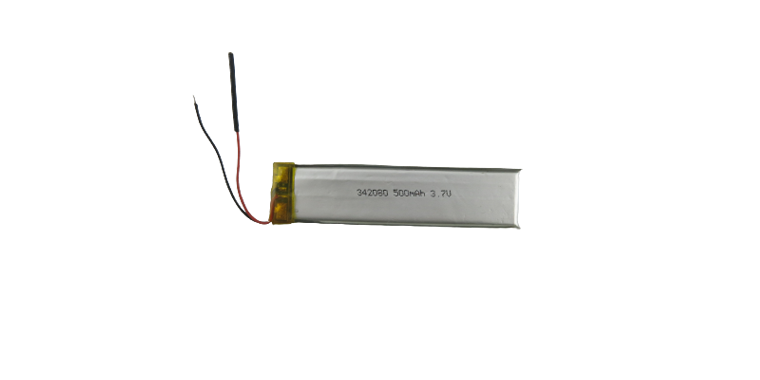

PLS342080 Rechargeable 500mah 3.7V Lithium Polymer Battery

PLS342080 Rechargeable 500mah 3.7V Lithium Polymer Battery

Name: PLS342080 Rechargeable 500mah 3.7V Lithium Polymer Battery
Brand: PLS Battery Co., Ltd.

PLS342080 is with 3.4*20*80mm(T*W*L) dimension, it is a 500mah capacity rechargeable lithium polymer battery, used for 3C digital devices. PLS battery as a professional battery manufacturer china, we can provide wholesale li polymer battery. Your requirements of customizing size, PCB, wire, connectors are welcomed.

GET A QUOTE

Datasheet Download

Specifications of PLS342080 Rechargeable 500mah 3.7V Lithium Polymer Battery

Item	Rating	Note
Model	PLS342080	3.42080mm
Nominal Capacity	500mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	3.70V
Standard Charge Current	0.2C	0.2C, 4.20V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 3.0V cut off.
Maximum Discharge Current	500mA	1.0C, Continuous Current
Maximum Discharge Current	1500mA	3.0C, Peak Current
Weight	10.5g
Operating Temperature	0~45℃	Charge
Operating Temperature	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
