26650-3500mah 3.2V 3500mah 7A LiFePO4 Battery Cell

26650-3500mah 3.2V 3500mah 7A LiFePO4 Battery Cell

Name: 26650-3500mah 3.2V 3500mah 7A LiFePO4 Battery Cell
Brand: PLS Battery Co., Ltd.

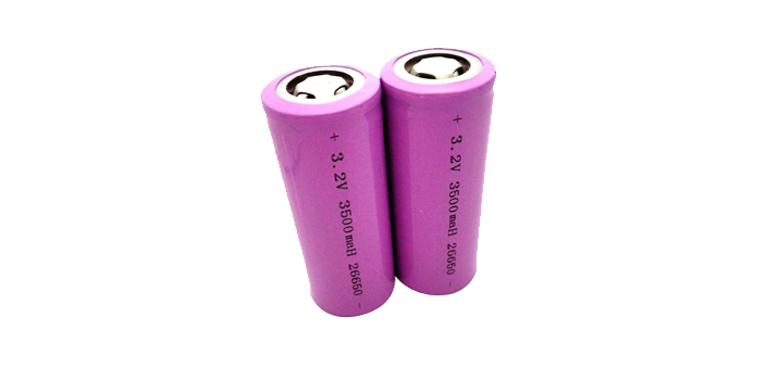

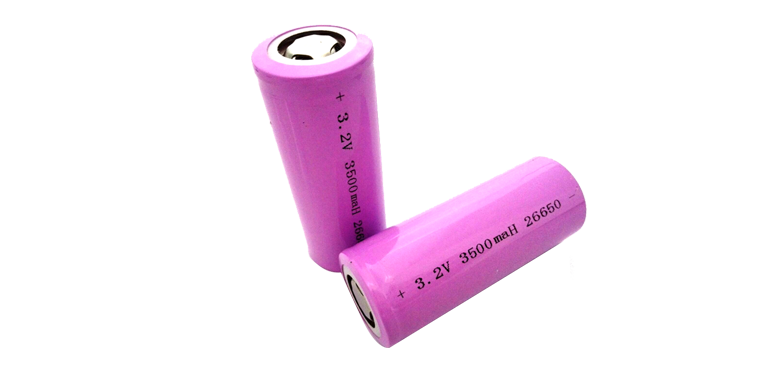

PLS IFR26650-3500 lifepo4 battery cell is with 26*65mm dimension, 3.2V 3500mah capacity, this is a capacity model with 3500mah along with the development of technology, which is common used in flashlights, battery packs.

PLS Battery, which is one of lithium ion battery manufacturers, can produce batteries with high performances for customers. Battery cells are continuing produced; lithium battery packs can be customized accordingly. If you want to know more about 26650 lifepo4, please contact us.

GET A QUOTE

Datasheet Download

Specification of 26650-3500mah 3.2V 3500mah 7A LiFePO4 Battery Cell

Item	Rating	Note
Model	IFR26650-3500	26*65mm
Nominal Capacity	3500mAh	Standard discharge, 0.2C discharge, 2.0V cut-off
Nominal Voltage	3.20V
Standard Charge Current	0.2C	0.2C, 3.65V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 2.0V cut off.
Maximum Discharge Current	1750mA	0.5C, Continuous Current
	7000mA	2C , Peak Current
Weight	85g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	flashlights, power supplies, wireless data transmitters, electric thermal clothing, shoes, portable instruments, portable lighting equipment, portable printers, industrial instruments, medical instruments, vehicles etc.
