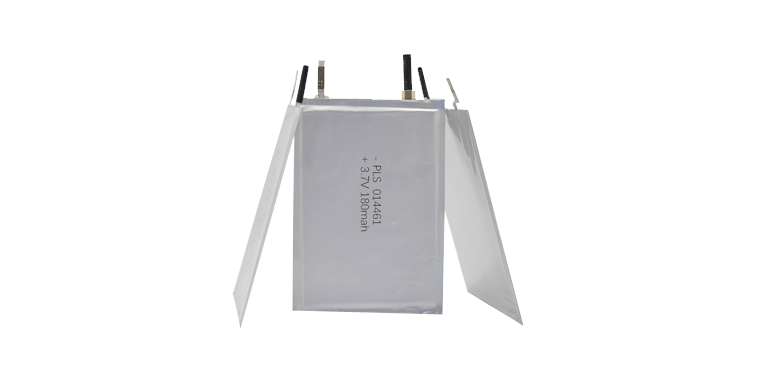

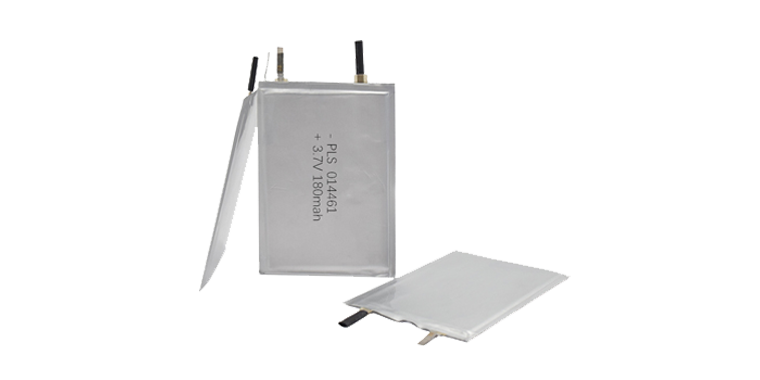

014461-180mah 3.7V Lipo Battery

Name: 014461-180mah 3.7V Lipo Battery
Brand: PLS Battery Co., Ltd.

PLS014461 is with 1*44*61mm dimension, ultrathin 1mm makes 3.7 v 180mah lipo battery widely used for electric cards, the capacity is 180mah and rechargeable lithium polymer batteries.

PLS Battery, as one of lithium ion battery manufacturers, is committed to producing high-quality battery li ion polymer for customers who want to buy lipo battery. Feel free to contact us.

GET A QUOTE

Datasheet Download

Specification of 014461-180mah 3.7V Lipo Battery

Item	Rating	Note
Model	PLS014461	14461mm
Nominal Capacity	180mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	3.70V
Standard Charge Current	0.2C	0.2C, 4.20V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 3.0V cut off.
Maximum Discharge Current	180mA	1.0C, Continuous Current
	540mA	3.0C, Peak Current
Weight	5.0g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
