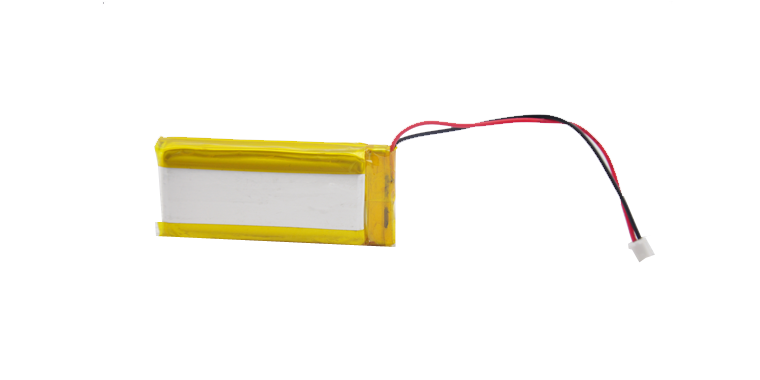

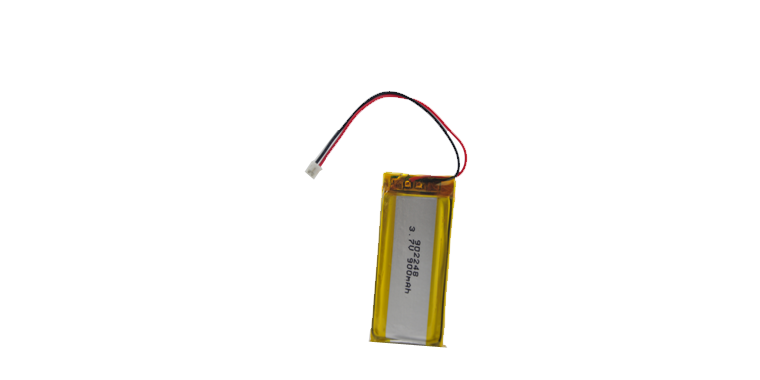

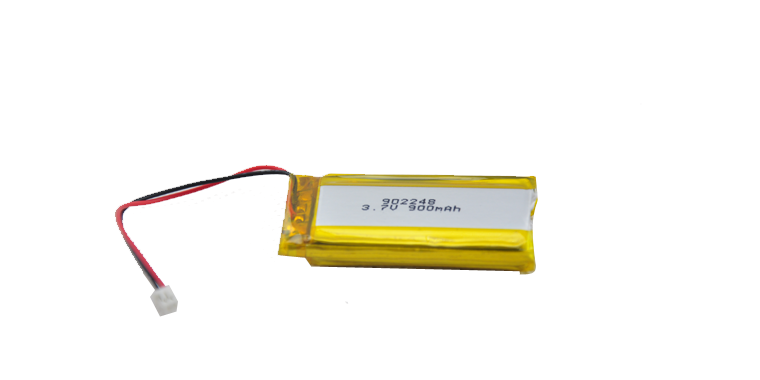

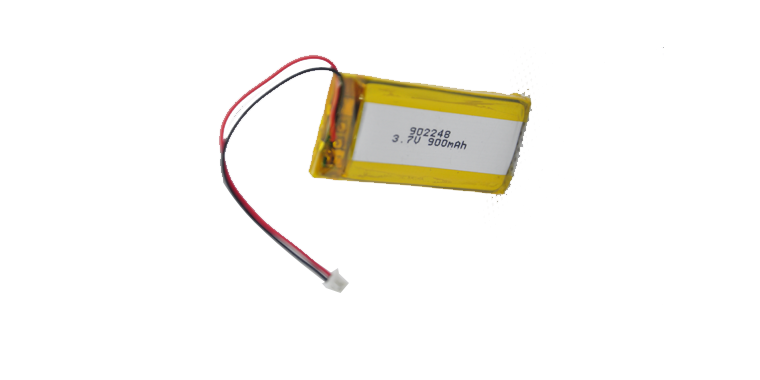

902248-900mah 3.7V Lipo Battery

Name: 902248-900mah 3.7V Lipo Battery
Brand: PLS Battery Co., Ltd.

PLS902248 is with 9.0*22*48mm(T*W*L) dimension, it is a 900mah capacity rechargeable lithium polymer battery, which is a common produced model, used for 3C digital devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.

PLS Battery, as one of lithium ion battery suppliers, is spaecialized in producing micro lipo battery with high performance and if you want to know more about battery li ion polymer, feel free to contact us.

GET A QUOTE

Datasheet Download

Specification of 902248-900mah 3.7V Lipo Battery

Item	Rating	Note
Model	PLS902248	9.02248mm
Nominal Capacity	900mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	3.70V
Standard Charge Current	0.2C	0.2C, 4.20V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 3.0V cut off.
Maximum Discharge Current	900mA	1.0C, Continuous Current
	2700mA	3.0C, Peak Current
Weight	17g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
