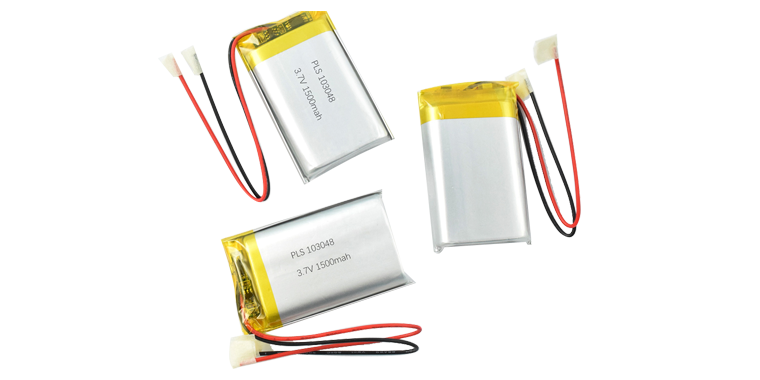

103048-1500mah 3.7V Lipo Battery

Name: 103048-1500mah 3.7V Lipo Battery
Brand: PLS Battery Co., Ltd.

PLS103048 is with 10.0*30*48mm(T*W*L) dimension, it is a rechargeable lithium-polymer battery with 1500mah capacity, which is a common produced model, usually with stock, used for 3C digital devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.

GET A QUOTE

Datasheet Download

PLS103048 lipo Battery 3.7 v 1500mah Specification

PLS Battery, as one of the most professional lipo battery manufacturers, is able to produce qualified micro lipo battery and if you want to buy PLS lithium polymer batteries, feel free to contact us.

Item	Rating	Note
Model	PLS103048	10.03048mm
Nominal Capacity	1500mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	3.70V
Standard Charge Current	0.2C	0.2C, 4.20V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 3.0V cut off.
Maximum Discharge Current	1500mA	1.0C, Continuous Current
	4500mA	3.0C, Peak Current
Weight	30g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
