106090-7000mah 3.7V Lipo Battery

Name: 106090-7000mah 3.7V Lipo Battery
Brand: PLS Battery Co., Ltd.

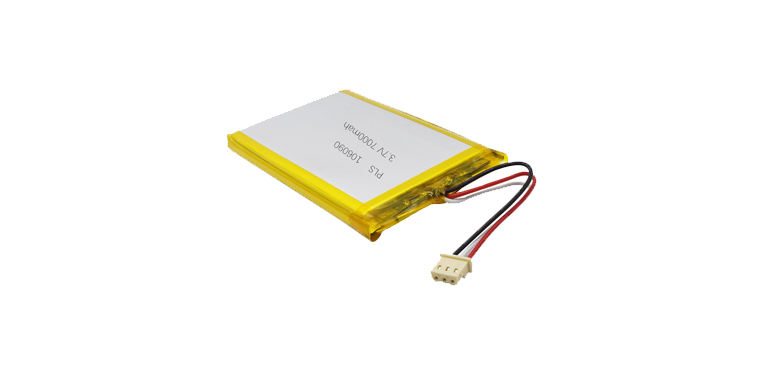

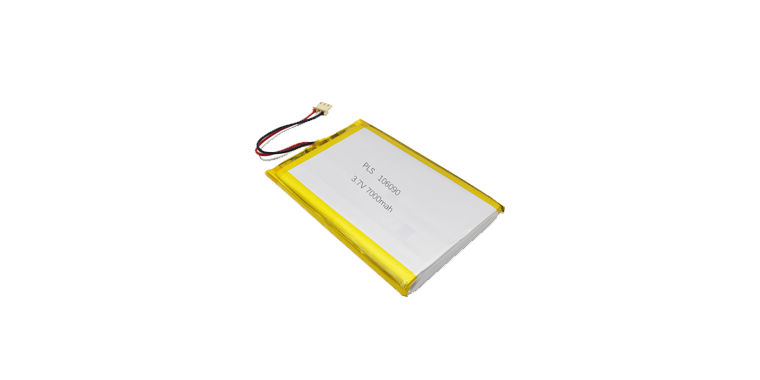

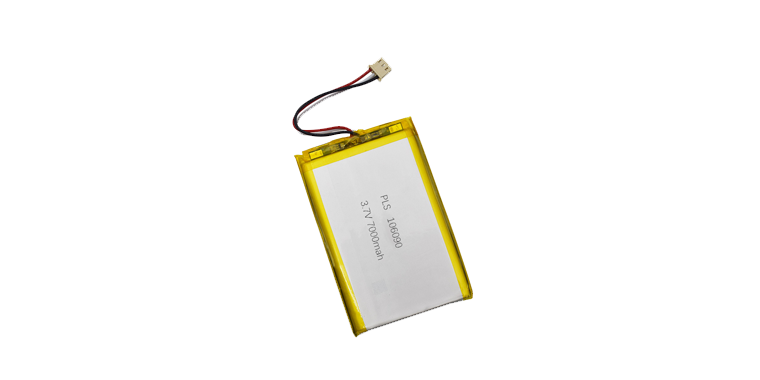

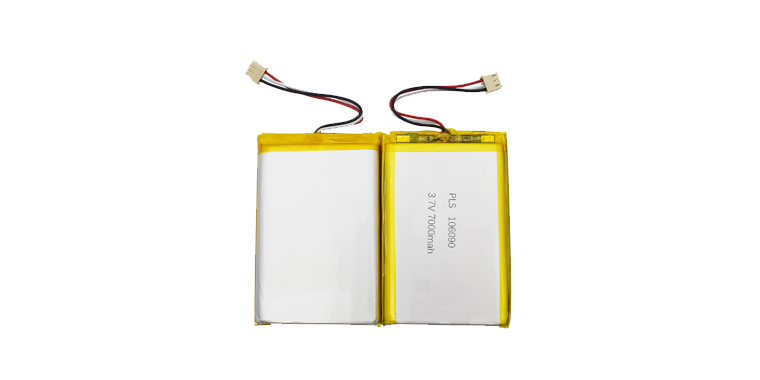

PLS106090 is with 10.0*60.0*90mm(T*W*L) dimension, it is a 3.7v rechargeable lithium polymer battery with 7000mah capacity, which is a customized produced model, used for high output electric devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.

PLS Battery, as one of lithium ion battery companies, is committed to producing high-quality battery li ion polymer for customers who want to buy lipo battery. Feel free to contact us.

GET A QUOTE

Datasheet Download

Specifications of 106090-7000mah 3.7V Lipo Battery

Item	Rating	Note
Model	PLS106090	10.06090mm
Nominal Capacity	7000mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	3.70V
Standard Charge Current	0.2C	0.2C, 4.20V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 3.0V cut off.
Maximum Discharge Current	7000mA	1.0C, Continuous Current
	21000mA	3.0C, Peak Current
Weight	130g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
