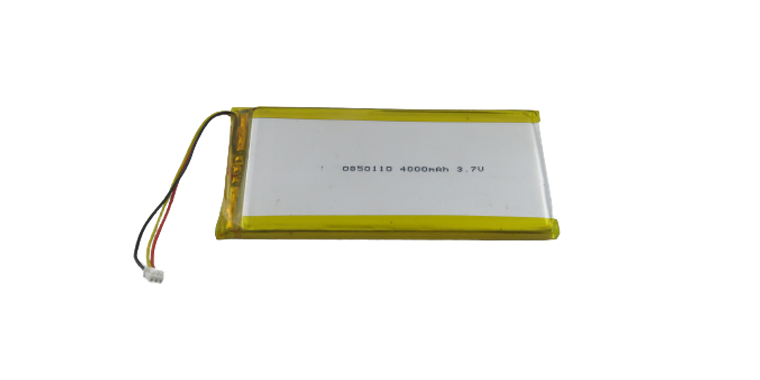

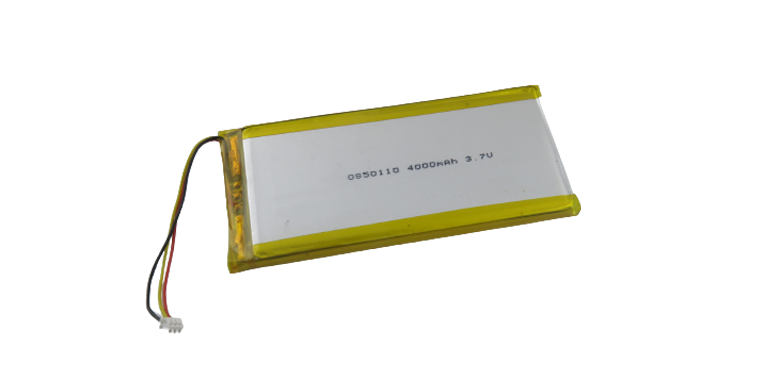

PLS8050110 Rechargeable 4000mah 3.7V Lipo Battery

PLS8050110 is with 8.0*50*110mm(T*W*L) dimension, it is a rechargeable lithium polymer battery with 4000mah capacity, which is a customized produced model, used for high output electric devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.


Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specifications of PLS8050110 Rechargeable 4000mah 3.7V Lipo Battery

Item

Rating

Note

Model

PLS8050110

8.0*50*110mm

Nominal Capacity

4000mAh

Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage

3.70V


Standard Charge Current

0.2C

0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 3.0V cut off.

Maximum Discharge Current

4000mA

1.0C, Continuous Current

12000mA

3.0C, Peak Current

Weight

77g


Operating Temperature

0~45℃

Charge

-20~60℃

Discharge

Storage Temperature

-20~45℃

1month

-20~35℃

3month

-20~20℃

1year

Application

Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
