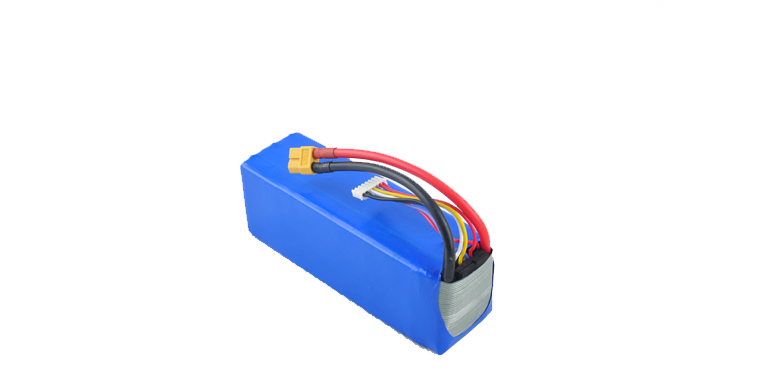

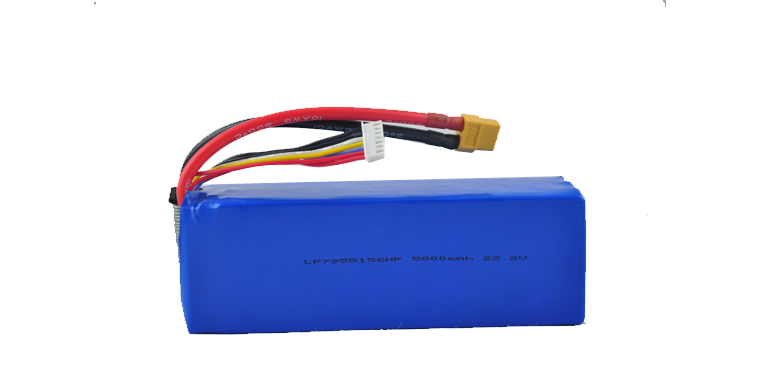

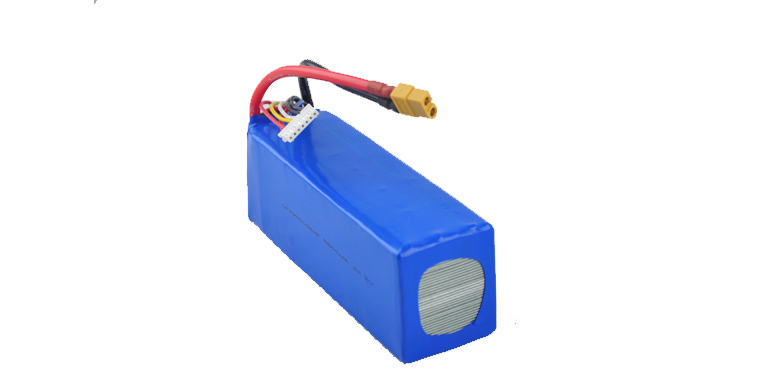

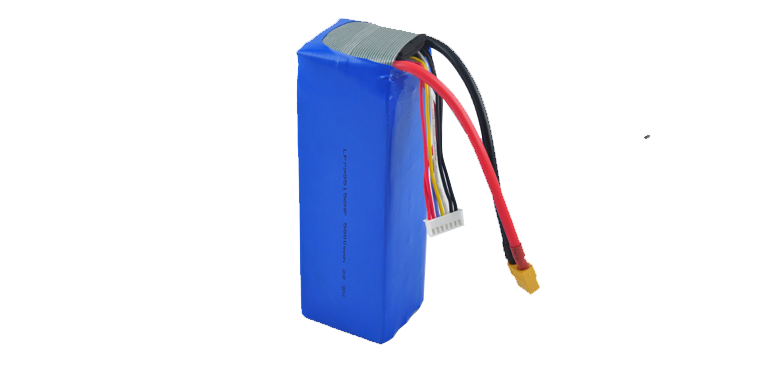

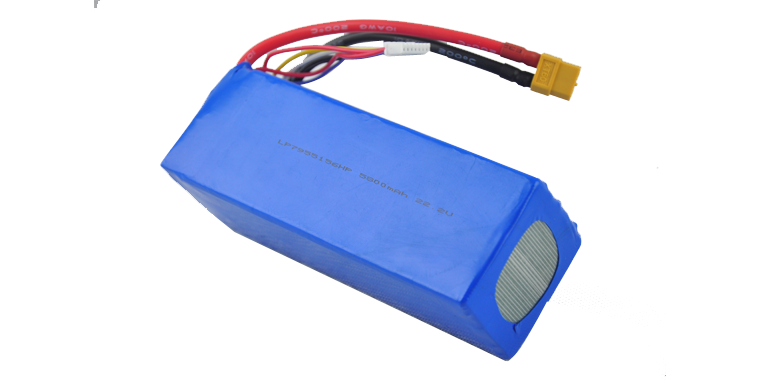

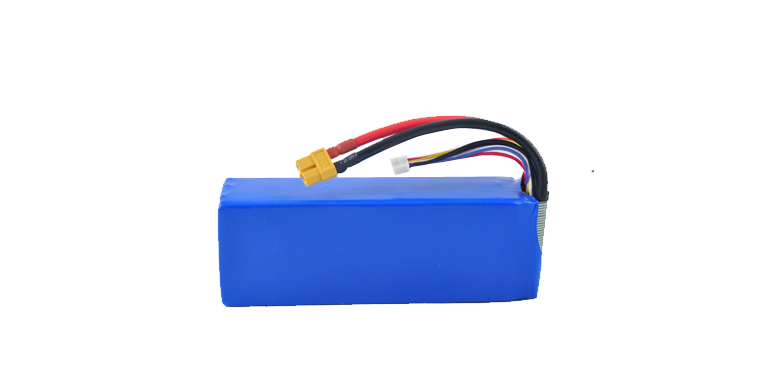

PLS7955156 6S1P 22.2V 5800Mah High Power Lipo Battery Pack

Name: PLS7955156 6S1P 22.2V 5800Mah High Power Lipo Battery Pack
Brand: PLS Battery Co., Ltd.

PLS7955156-6S with 7955156 (7.9*55*156mm) (T*W*L) battery cells.

It is a rechargeable lithium polymer battery with 5C C-rate discharge, capacity is 5800mah, which is a customized 22.2V battery pack. The lithium power pack is used for high output electric devices. Our company, which is one of lithium ion battery companies, your requirements of customizing size, wire, connectors are welcomed.

Specification of PLS7955156 6S1P 22.2V 5800Mah High Power Lipo Battery Pack

Item	Rating	Note
Model	PLS7955156-6S	7.955156mm(cell)
Nominal Capacity	5800mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	22.2V
Standard Charge Current	0.2C	0.2C, 25.2V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 18.0V cut off.
Maximum Discharge Current	29000mA	5C, Continuous Current
	58000mA	10C, Peak Current
Weight	750g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	UAVs, toys, airplane models, boat models, robots, military equipment, etc.
