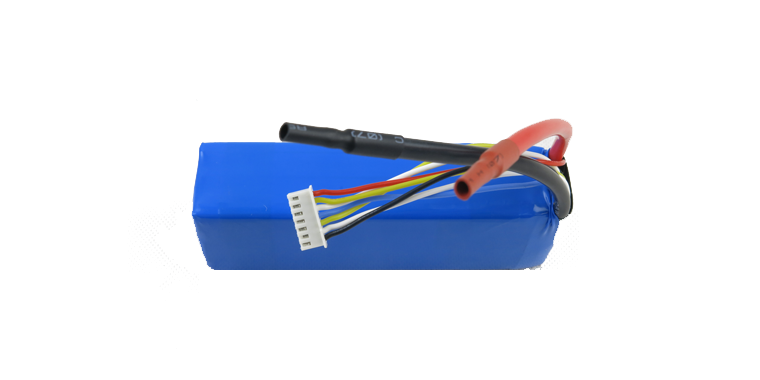

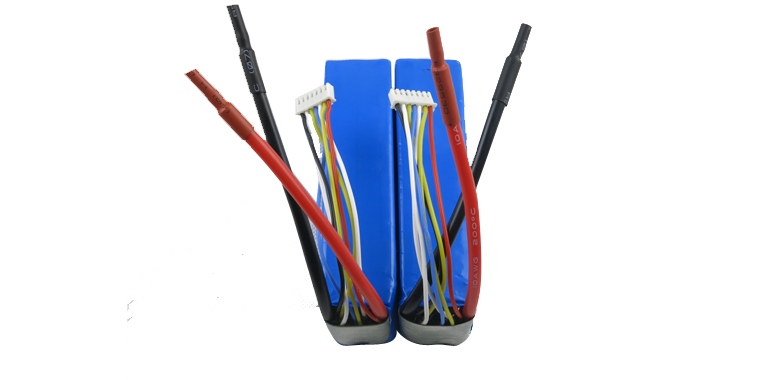

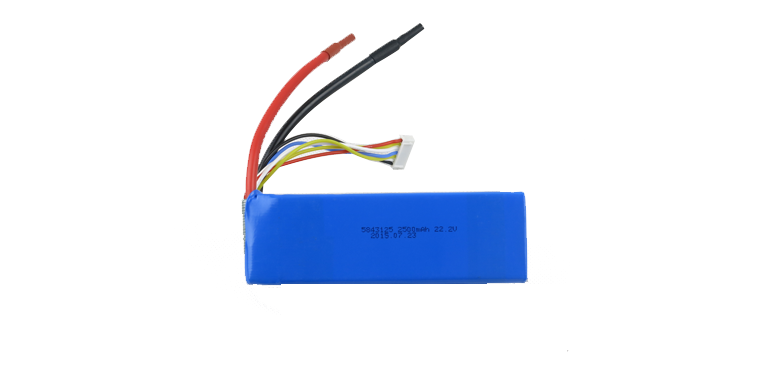

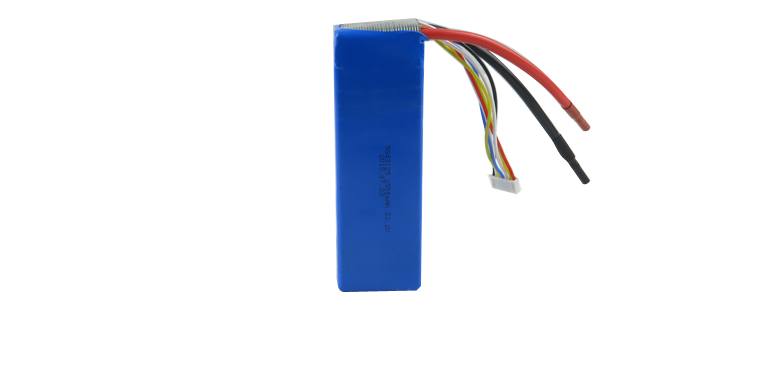

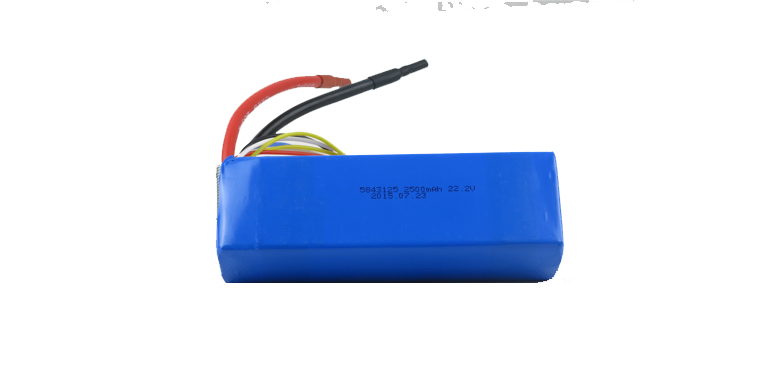

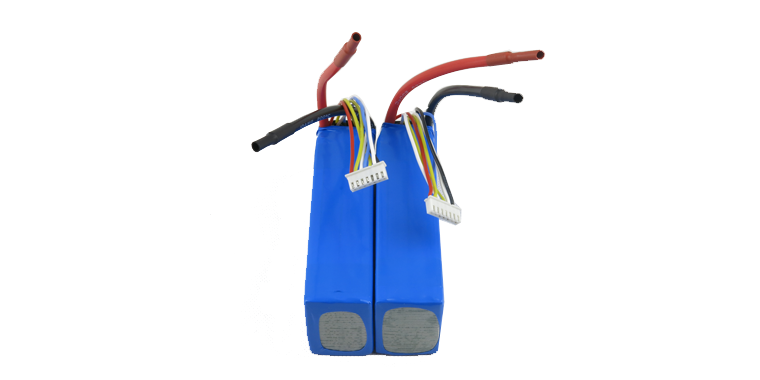

PLS5843125 6S1P 22.2V 2500Mah High Power Lipo Battery Pack

Name: PLS5843125 6S1P 22.2V 2500Mah High Power Lipo Battery Pack
Brand: PLS Battery Co., Ltd.

PLS5843125-6S with 5843125(5.8*43*125mm) (T*W*L) battery cells.

It is a rechargeable lithium polymer battery with 30C high C-rate discharge, capacity is 2500mah, which is a customized 22.2V lithium pack, used for high output electric devices. Your requirements of customizing size, wire, connectors are welcomed in our lithium ion battery factory.

Specification of PLS5843125 6S1P 22.2V 2500Mah High Power Lipo Battery Pack

Item	Rating	Note
Model	PLS5843125-6S	5.843125mm(cell)
Nominal Capacity	2500mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	22.2V
Standard Charge Current	0.2C	0.2C, 25.2V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 18.0V cut off.
Maximum Discharge Current	75000mA	30C , Continuous Current
	87500mA	35C , Peak Current
Weight	380g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	UAVs, toys, airplane models, boat models, robots, military equipment, etc.
