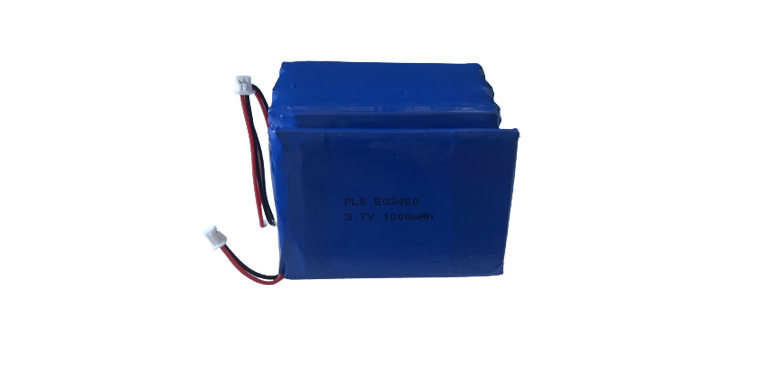

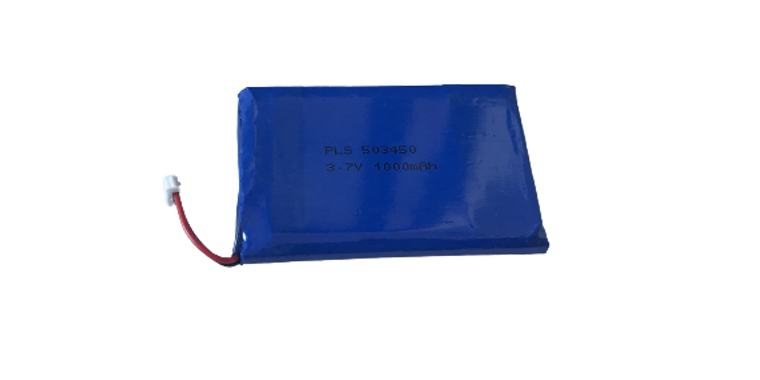

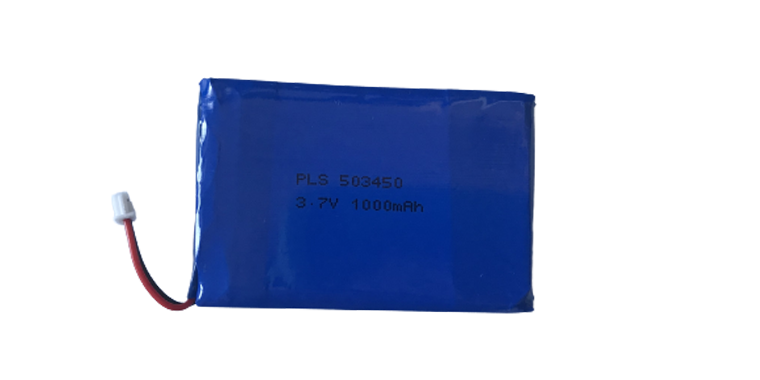

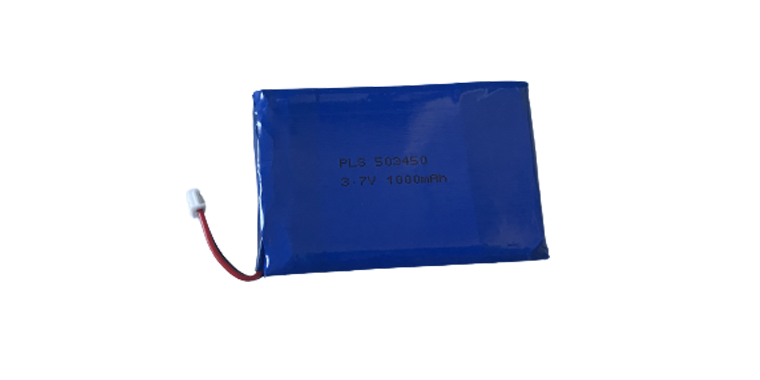

PLS503450 Rechargeable 1000mah 3.7V Lipo Battery

PLS503450 is with 5.0*34*50mm(T*W*L) dimension, it is a 1000mah capacity rechargeable lithium polymer battery, which is a common produced model, used for 3C digital devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.


Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specifications of PLS503450 Rechargeable 1000mah 3.7V Lipo Battery

Item

Rating

Note

Model

PLS503450

5.0*34*50mm

Nominal Capacity

1000mAh

Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage

3.70V


Standard Charge Current

0.2C

0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 3.0V cut off.

Maximum Discharge Current

1000mA

1.0C, Continuous Current

3000mA

3.0C, Peak Current

Weight

18.8g


Operating Temperature

0~45℃

Charge

-20~60℃

Discharge

Storage Temperature

-20~45℃

1month

-20~35℃

3month

-20~20℃

1year

Application

Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
