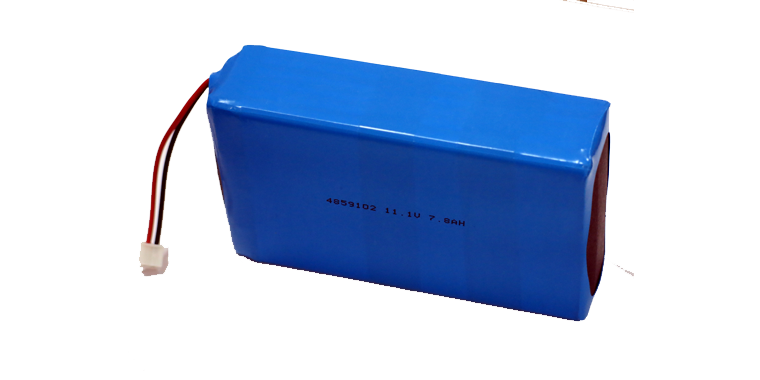

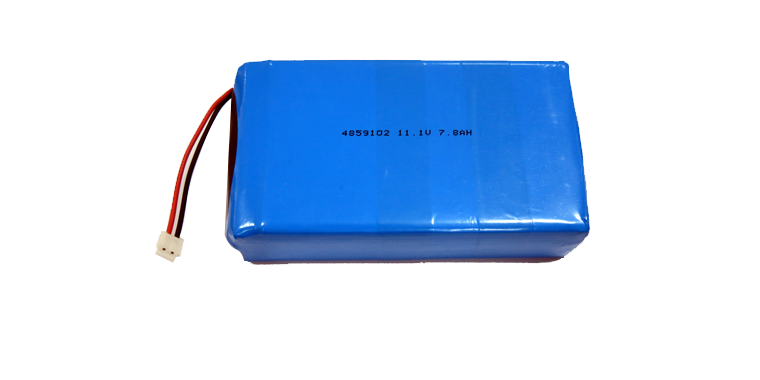

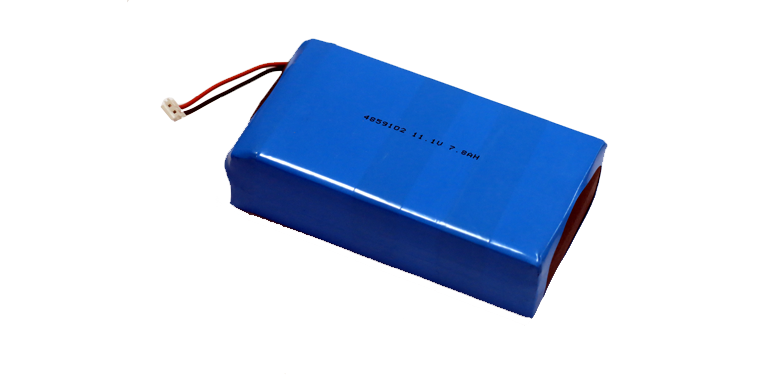

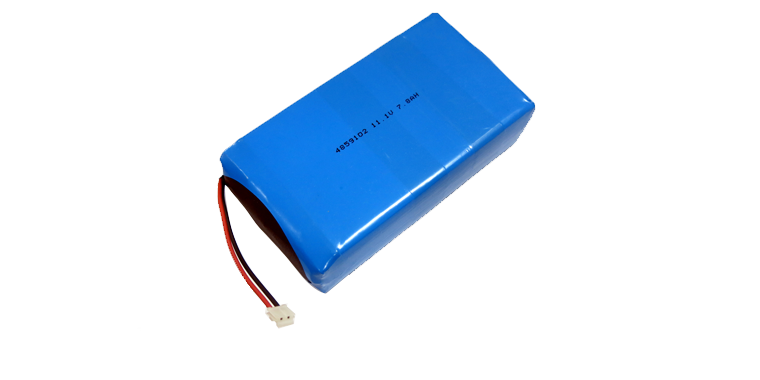

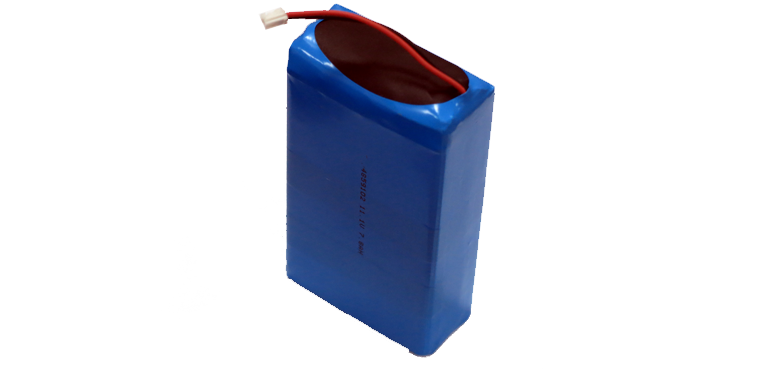

PLS4859102-3S is assembled with 4859102(4.8*59*102mm) (T*W*L) battery cells.
It is a rechargeable lithium polymer battery with 7800mah capacity, which is a customized 11.1V lithium ion battery pack, used for high output electric devices. Your requirements of customizing size, PCB, wire, connectors are welcomed in our lithium ion battery factory.
Item | Rating | Note |
Model | PLS4859102-3S | 4.8*59*102mm(cell) |
Nominal Capacity | 7800mAh | Standard discharge, 0.2C discharge, 3.0V cut-off |
Nominal Voltage | 11.10V | |
Standard Charge Current | 0.2C | 0.2C, 12.60V (CC-CV) 0.03C cut off. |
Standard Discharge Current | 0.2C | 0.2C, 9.0V cut off. |
Maximum Discharge Current | 7800mA | 1.0C , Continuous Current |
23400mA | 3.0C , Peak Current | |
Weight | 459g | |
Operating Temperature | 0~45℃ | Charge |
-20~60℃ | Discharge | |
Storage Temperature | -20~45℃ | 1month |
-20~35℃ | 3month | |
-20~20℃ | 1year | |
Application | Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards... |
