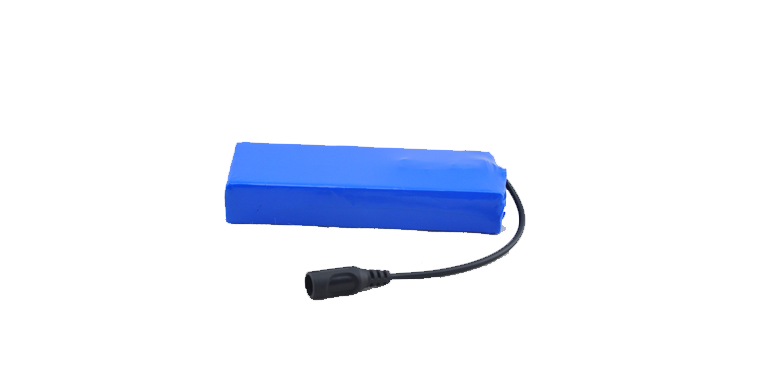

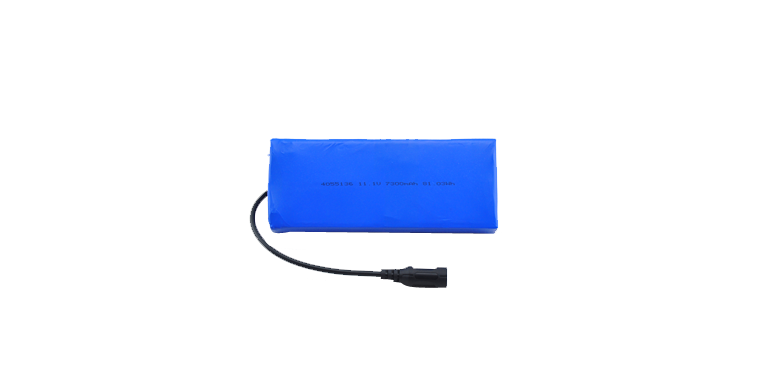

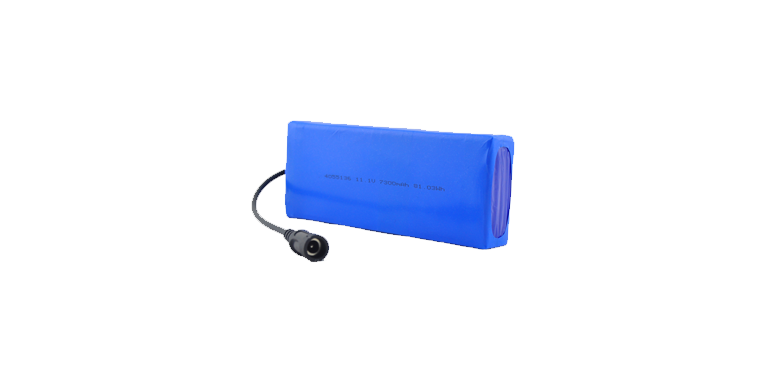

PLS4055136 3S2P 11.1V 7300Mah Lithium Polymer Battery Pack

Name: PLS4055136 3S2P 11.1V 7300Mah Lithium Polymer Battery Pack
Brand: PLS Battery Co., Ltd.

PLS4055136-3S is assembled with 4055136(4.0*55*136mm) (T*W*L) battery cells.

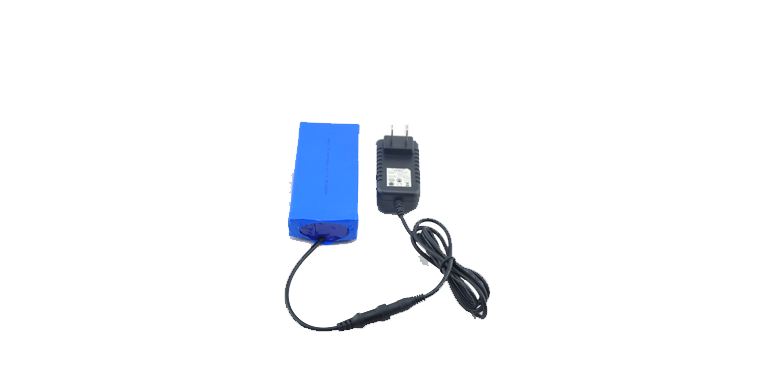

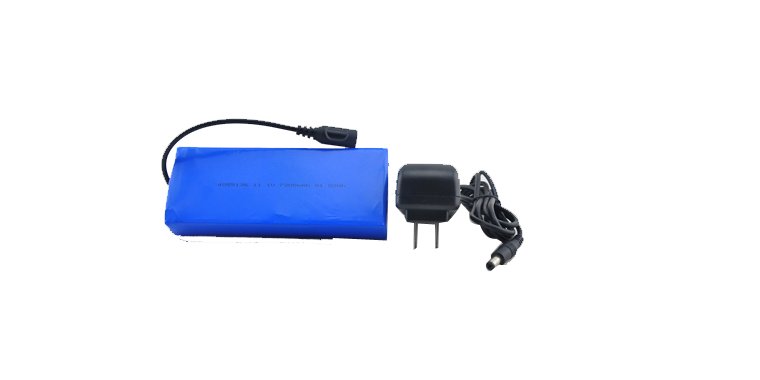

It is a rechargeable lithium polymer battery with 7300mah capacity, which is a customized 11.1V lithium ion battery pack with charger, used for high output electric devices. Your requirements of customizing size, PCB, wire, connectors are welcomed in our lithium ion battery factory.

Specifications of PLS4055136 3S2P 11.1V 7300Mah Lithium Polymer Battery Pack

Item	Rating	Note
Model	PLS4055136-3S	4.055136mm(cell)
Nominal Capacity	7300mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	11.10V
Standard Charge Current	0.2C	0.2C, 12.60V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 9.0V cut off.
Maximum Discharge Current	7300mA	1.0C , Continuous Current
	21900mA	3.0C , Peak Current
Weight	420g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
