PLS11566158 6S1P 22.2V 10Ah High Capacity Lipo Batteries Pack

Name: PLS11566158 6S1P 22.2V 10Ah High Capacity Lipo Batteries Pack
Brand: PLS Battery Co., Ltd.

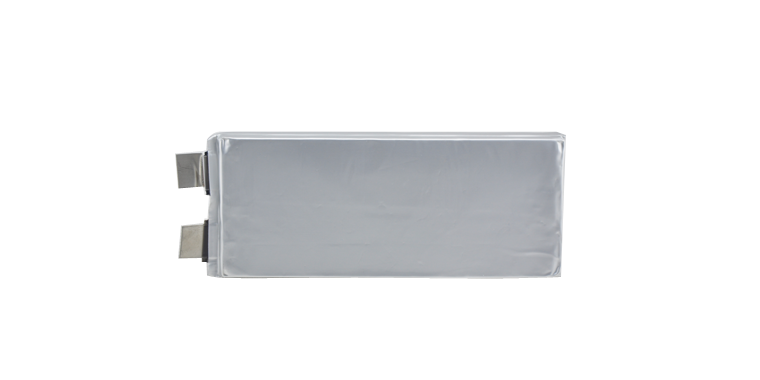

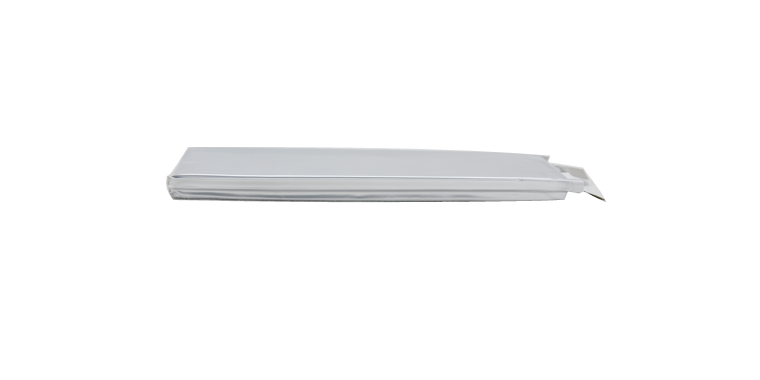

PLS11566168-6S with 11566168 (11.5*66*168mm) (T*W*L) battery cells.

It is a rechargeable lithium polymer battery with 2C C-rate discharge, capacity is 10000mah, which is a customized 22.2V lithium pack, used for high output electric devices. Your requirements of customizing size, wire, connectors are welcomed in our lithium ion battery factory.

Specification of PLS11566158 6S1P 22.2V 10Ah High Capacity Lipo Batteries Pack

Item	Rating	Note
Model	PLS11566168-6S	11.566168mm(cell)
Nominal Capacity	10000mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	22.2V
Standard Charge Current	0.2C	0.2C, 25.2V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 18.0V cut off.
Maximum Discharge Current	20000mA	2C, Continuous Current
	50000mA	5C, Peak Current
Weight	1150g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	UAVs, toys, airplane models, boat models, robots, military equipment, etc.
