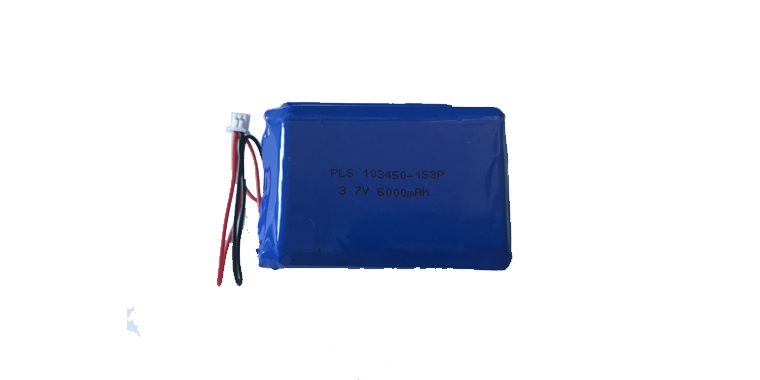

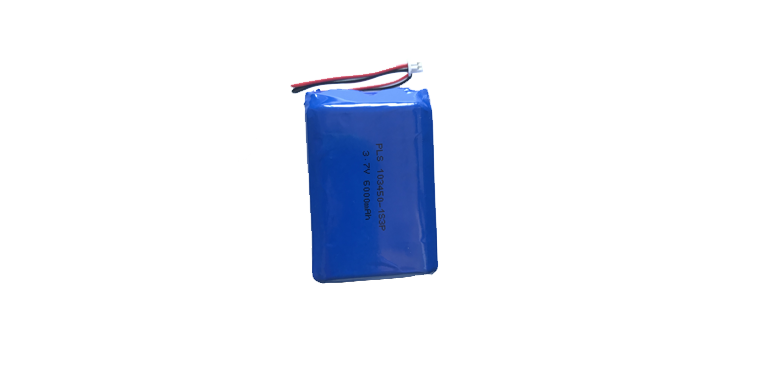

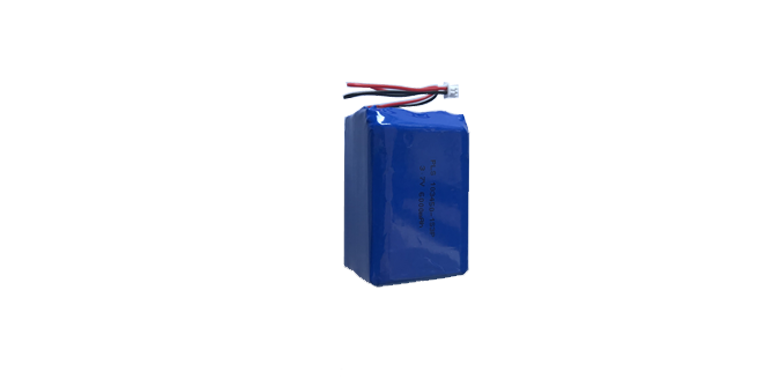

PLS103450 Rechargeable 1S3P 6000Mah 3.7V Lipo Battery Pack

Name: PLS103450 Rechargeable 1S3P 6000Mah 3.7V Lipo Battery Pack
Brand: PLS Battery Co., Ltd.

PLS103450-3P is assembled with 103450(10.0*34*50mm) (T*W*L) 3.7V 2000mah battery cells.

It is a rechargeable lithium polymer battery with 6000mah capacity, which is a customized produced lithium ion power pack, used for high output electric devices. Your demands for customizing size, PCB, wire, connectors of lithium batteries are welcomed.

Specifications of PLS103450 Rechargeable 1S3P 6000Mah 3.7V Lipo Battery Pack

Item	Rating	Note
Model	PLS103450-3P	10.03450mm(cell)
Nominal Capacity	6000mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	3.70V
Standard Charge Current	0.2C	0.2C, 4.20V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 3.0V cut off.
Maximum Discharge Current	6000mA	1.0C , Continuous Current
	18000mA	3.0C , Peak Current
Weight	110g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
