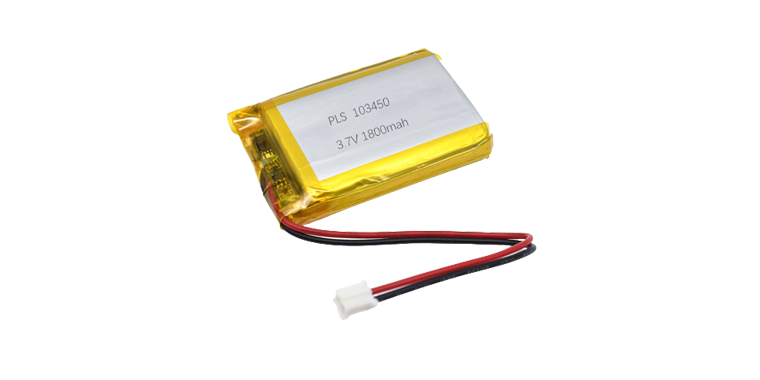

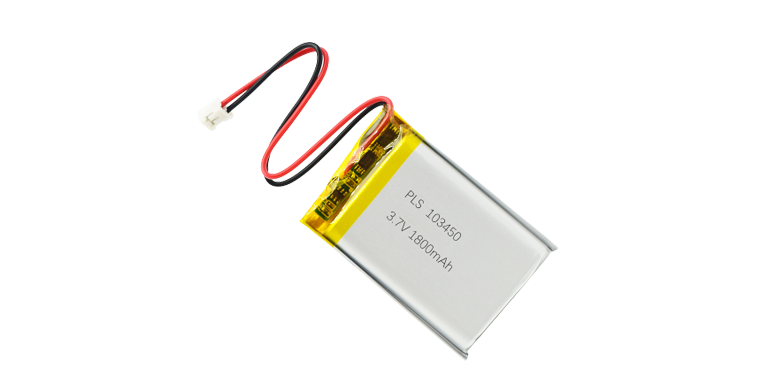

PLS103450 Rechargeable 1800mah 3.7V Lipo Battery

PLS103450 Rechargeable 1800mah 3.7V Lipo Battery

Name: PLS103450 Rechargeable 1800mah 3.7V Lipo Battery
Brand: PLS Battery Co., Ltd.

PLS103450 is with 10.0*34*50mm(T*W*L) dimension, it is a rechargeable lithium polymer battery with 1800mah capacity, usually can be 2000mah, which is a common produced model, usually with stock. PLS battery is a lithium polymer batteries factory, our company can offer wholesale li polymer battery. Your requirements of customizing size, PCB, wire, connectors are welcomed.

GET A QUOTE

Datasheet Download

Specifications of PLS103450 Rechargeable 1800mah 3.7V Lipo Battery

Item	Rating	Note
Model	PLS103450	10.03450mm
Nominal Capacity	1800mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	3.70V
Standard Charge Current	0.2C	0.2C, 4.20V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 3.0V cut off.
Maximum Discharge Current	1800mA	1.0C, Continuous Current
Maximum Discharge Current	5400mA	3.0C, Peak Current
Weight	35g
Operating Temperature	0~45℃	Charge
Operating Temperature	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
