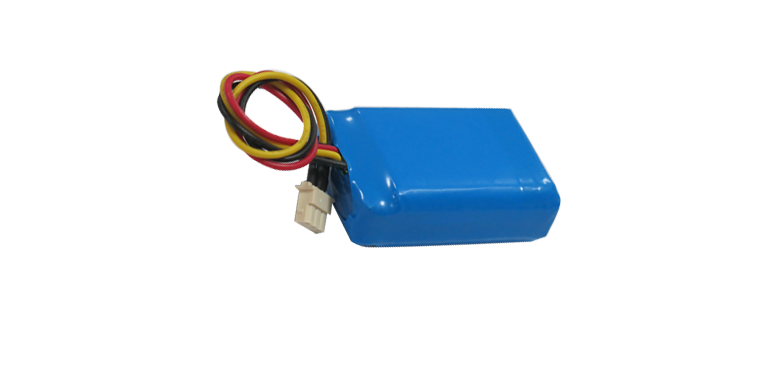

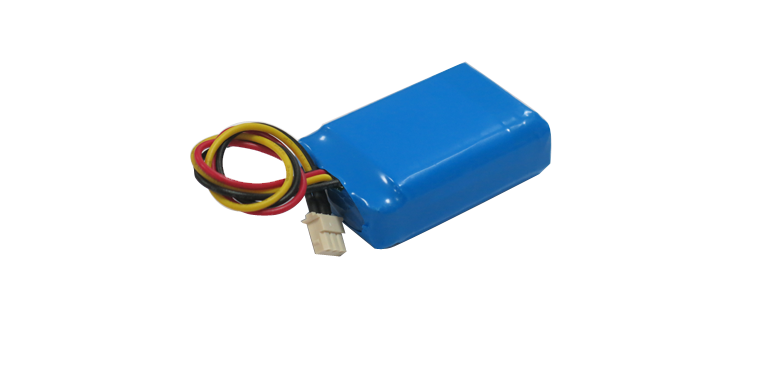

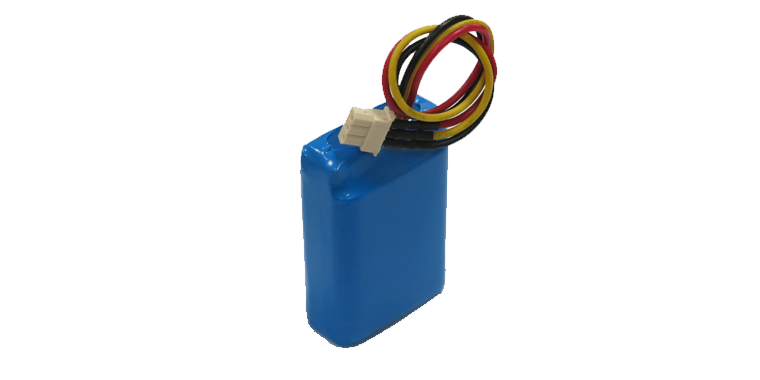

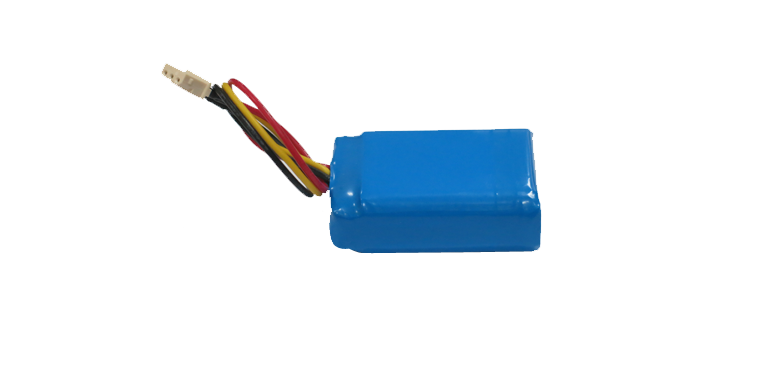

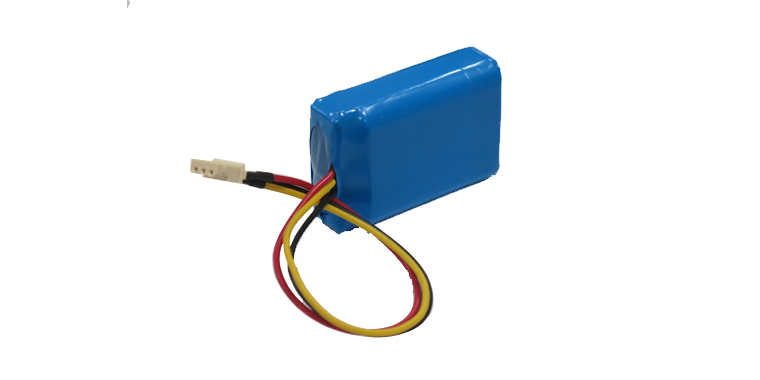

PLS093448 2S1P Rechargeable 1800Mah 7.4V Lithium Polymer Battery Pack

Name: PLS093448 2S1P Rechargeable 1800Mah 7.4V Lithium Polymer Battery Pack
Brand: PLS Battery Co., Ltd.

PLS093448-2S is with 093448(9.0*34*48mm) (T*W*L) battery cells.

It is a 7.4v rechargeable lithium polymer battery with 1800mah capacity, which is a customized produced model. The lithium pack is used for high output electric devices. In PLS Battery, which is one of lithium ion battery suppliers, your requirements of customizing size, PCB, wire, connectors are welcomed.

Specification of PLS093448 2S1P Rechargeable 1800Mah 7.4V Lithium Polymer Battery Pack

Item	Rating	Note
Model	PLS093448-2S	9.03448mm(cell)
Nominal Capacity	1800mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	7.40V
Standard Charge Current	0.2C	0.2C, 8.40V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 6.0V cut off.
Maximum Discharge Current	1800mA	1.0C , Continuous Current
	5400mA	3.0C , Peak Current
Weight	70g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
