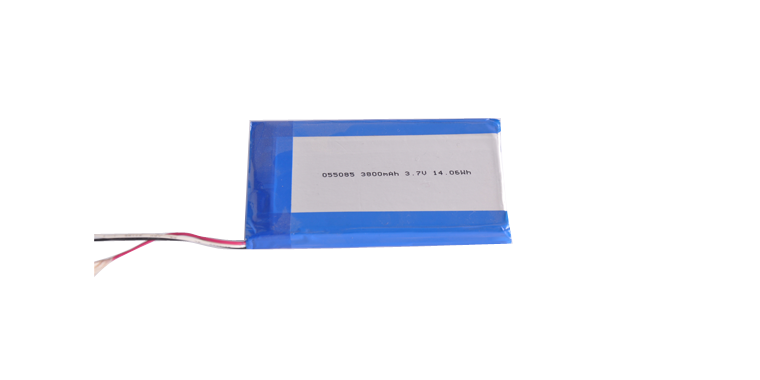

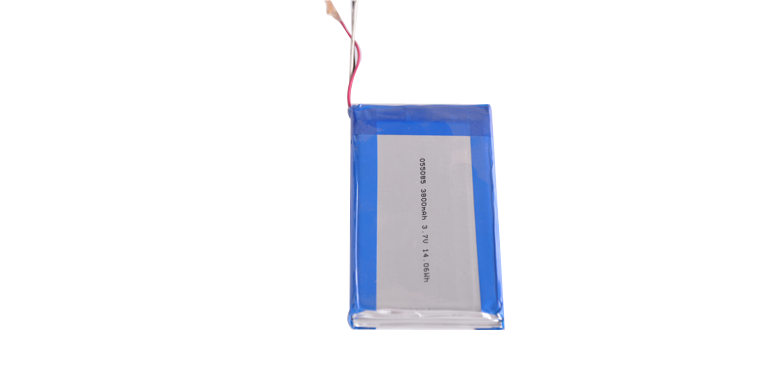

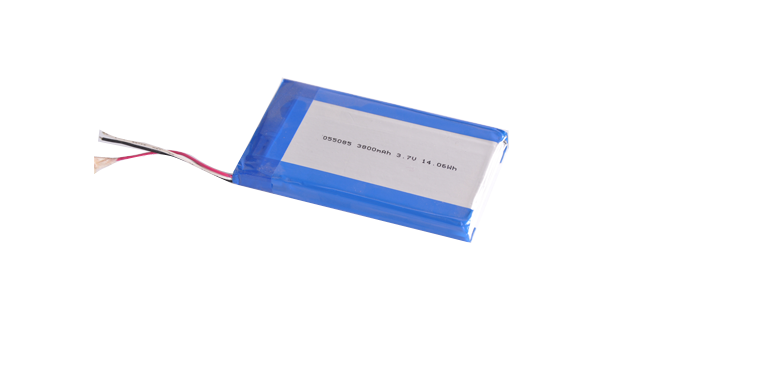

PLS055085-2P is assembled with 055085(5.0*50*85mm) (T*W*L) 3.7V 1900mah battery cells.
It is a rechargeable lithium polymer battery with 3800mah capacity, which is a customized produced lithium pack, used for high output electric devices. In PLS Battery,which is one of lithium ion battery suppliers, any requirements of customizing size, PCB, wire, connectors are welcomed.
Item | Rating | Note |
Model | PLS055085-2P | 5.0*50*85mm(cell) |
Nominal Capacity | 3800mAh | Standard discharge, 0.2C discharge, 3.0V cut-off |
Nominal Voltage | 3.70V | |
Standard Charge Current | 0.2C | 0.2C, 4.20V (CC-CV) 0.03C cut off. |
Standard Discharge Current | 0.2C | 0.2C, 3.0V cut off. |
Maximum Discharge Current | 3800mA | 1.0C , Continuous Current |
11400mA | 3.0C , Peak Current | |
Weight | 76g | |
Operating Temperature | 0~45℃ | Charge |
-20~60℃ | Discharge | |
Storage Temperature | -20~45℃ | 1month |
-20~35℃ | 3month | |
-20~20℃ | 1year | |
Application | Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards... |
