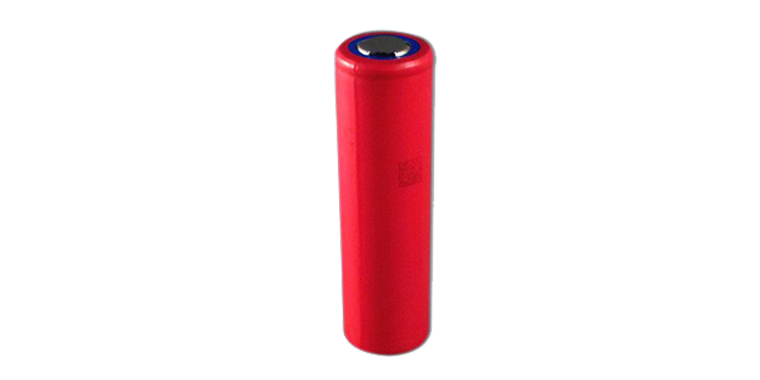

NCR18650GA 3.6V 3500mah 10A Li Ion Battery Cell

NCR18650GA 3.6V 3500mah 10A Li Ion Battery Cell

Sanyo NCR18650GA 3500mah 10a battery is one of the highest capacity cells of Sanyo and Panasonic. This ncr18650ga battery is 3500mah and has 10A of maximum continuous discharge current, the energy density is 693Wh/L and 224Wh/kg, sanyo 18650 becomes one popular 18650 choices for battery packs, widely used for power tools, electric vehicles, golf carts, backup power supplies, etc.


We, as one of lithium ion battery companies, offer qualified sanyo ncr18650ga protected button top as well as ncr18650ga with tabs, which have passed strict sanyo ncr18650ga review and many times of sanyo ncr18650ga tests. And our lithium ion battery cell price is competitive in the market. If you want to know more about sanyo 18650 battery specifications, you can download related ncr18650ga pdf on our website. If you want to buy sanyo lithium ion battery, please contact us.


Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Details of NCR18650GA 3.6V 3500mah 10A Li-Ion Battery Cell

Product NameSanyo NCR18650GA 3500mah 10A 18650 High Drain Battery
BrandSanyo
ModelNCR18650GA
Dimension18650


Specifications of NCR18650GA 3.6V 3500mah 10A Li-Ion Battery Cell


The ncr18650ga specs are as following:


  • Max continuous discharge: 10A

  • Max continuous charge:1.675A

  • Capacity: 3500mAh (High Drain)

  • Nominal voltage: 3.6V

  • Full charge voltage: 4.20V±0.05V

  • Discharge temperature: -20°C ~ +75°C

  • Dimensions: Height: 65.0mm±0.5mm. Diameter: 18.0mm±0.5mm

  • Net weight: 45g
