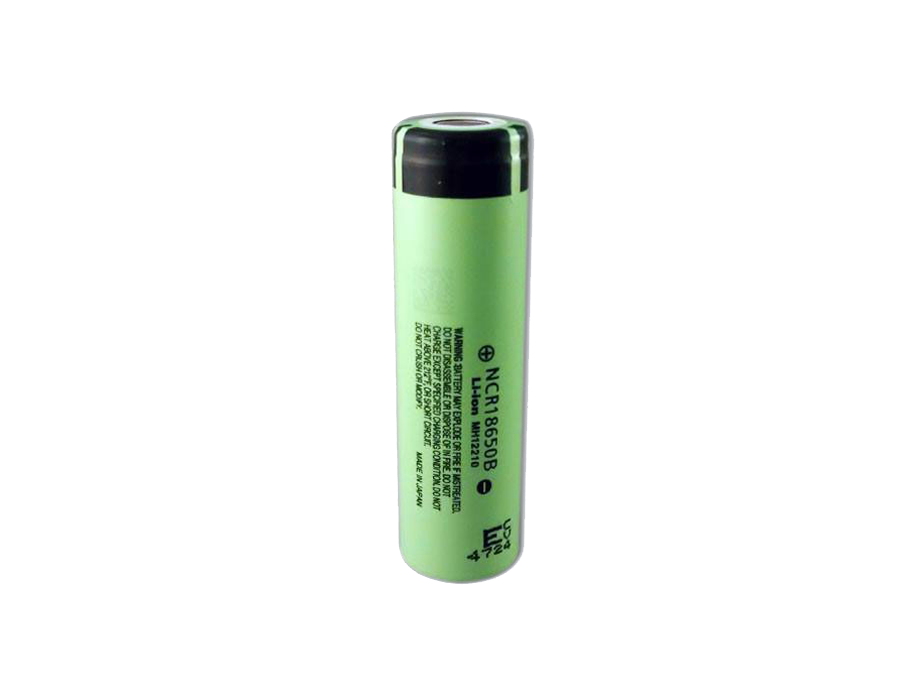

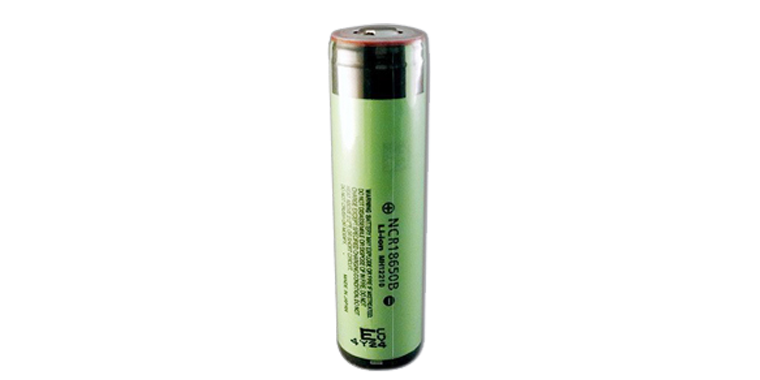

NCR18650B 3.6V 3400mah Li Ion Battery With PCB Protected

NCR18650B 3.6V 3400mah Li Ion Battery With PCB Protected

With adding a button-top PCB (protective circuit board) to the positive terminal of the Panasonic NCR18650B 3400mah battery cell for protecting the panasonic ncr18650b batteries from short-circuiting, overcharge, and over-discharge, which only add the height of the battery cell, this protected battery is ideal for flashlights.


We, as an expert of lithium ion battery in china, can add this button-top PCB with another model of 18650 battery cells too. If you want to buy Panasonic NCR18650 lithium-ion battery cell, or know more about different types of lithium batteries, please contact us.


Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Details of NCR18650B 3.6V 3400mah Li-Ion Battery With PCB Protected

Product NamePanasonic NCR18650B 3400mah 18650 Protected(PCB) Button Top Battery
BrandPanasonic
ModelNCR18650B
Dimension18650


Applications of NCR18650B 3.6V 3400mah Li-Ion Battery With PCB Protected

  • Max continuous discharge: 4.875A

  • Max continuous charge: 1.625A

  • Capacity: 3400mAh

  • Nominal voltage: 3.6V

  • Full charge voltage: 4.20V±0.05V

  • Discharge temperature: -20°C ~ +60°C

  • Dimensions: Height: 65.0mm±0.5mm. Diameter: 18.0mm±0.5mm

  • Net weight: 48g

  • With PCB protect
