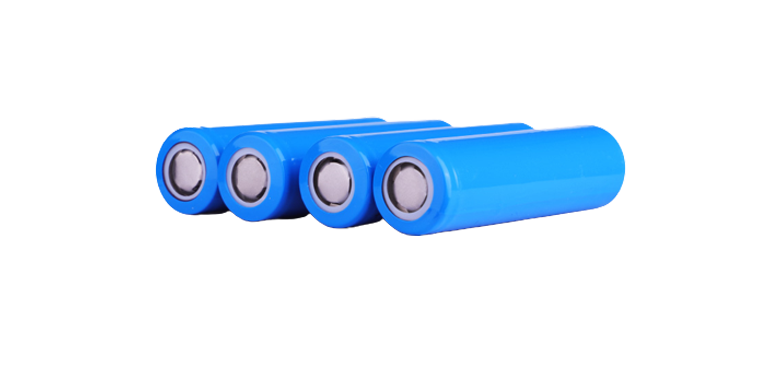

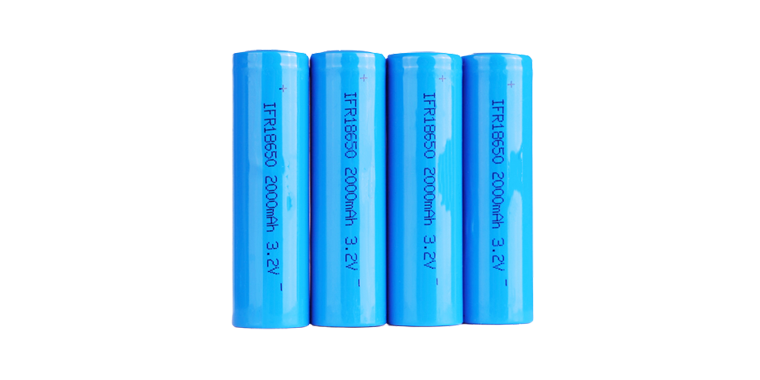

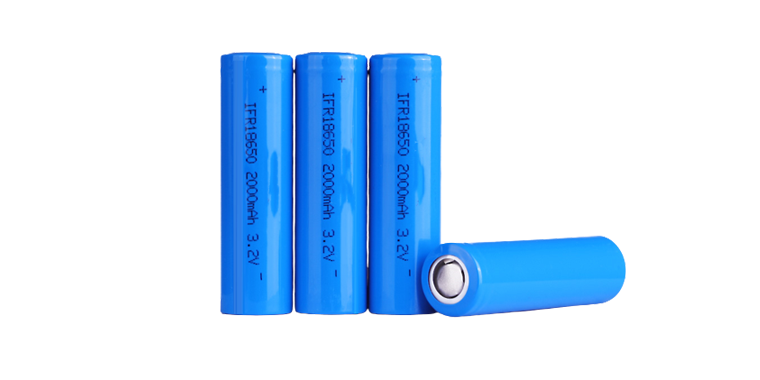

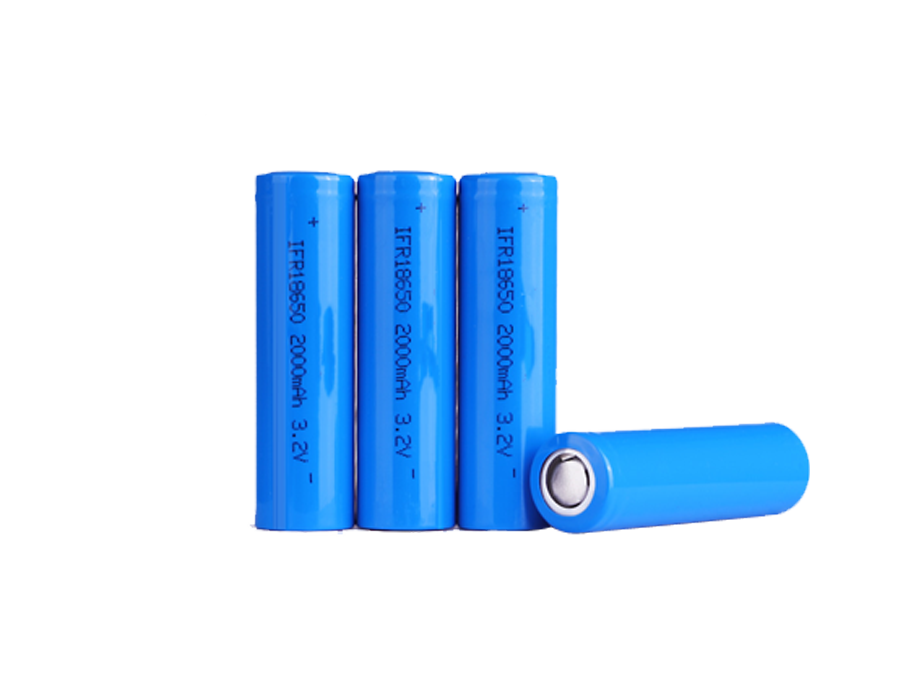

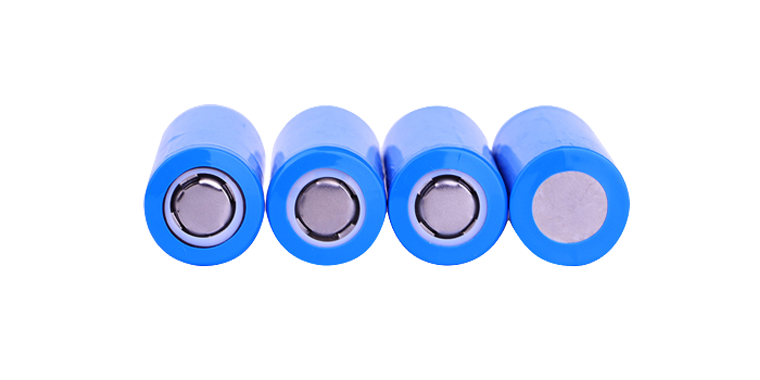

IFR18650-2000mah 3.2V 2000mah 2A LiFePO4 Battery Cell

PLS IFR18650-2000 lifepo4 battery cell is with 18*65mm dimension, 3.2V 2000mah capacity, this is a capacity model as high as 2000mah for lifepo4 18650 batteries, which is common used in flashlights, battery packs, etc. Battery cells are continuing produced; packs can be customized accordingly.


Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specifications of IFR18650-2000mah 3.2V 2000mah 2A LiFePO4 Battery Cell

Item

Rating

Note

Model

IFR18650-2000

18*65mm

Nominal Capacity

2000mAh

Standard discharge, 0.2C

discharge, 2.0V cut-off

Nominal Voltage

3.20V


Standard Charge Current

0.2C

0.2C, 3.65V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 2.0V cut off.

Maximum Discharge Current

1000mA

0.5C, Continuous Current

2000mA

1C, Peak Current

Weight

45g


Operating Temperature

0~45℃

Charge

-20~60℃

Discharge

Storage Temperature

-20~45℃

1month

-20~35℃

3month

-20~20℃

1year

Application

flashlights, power supplies, wireless data transmitters, electric thermal clothing, shoes, portable instruments, portable lighting equipment, portable printers, industrial instruments, medical instruments, vehicles etc.
