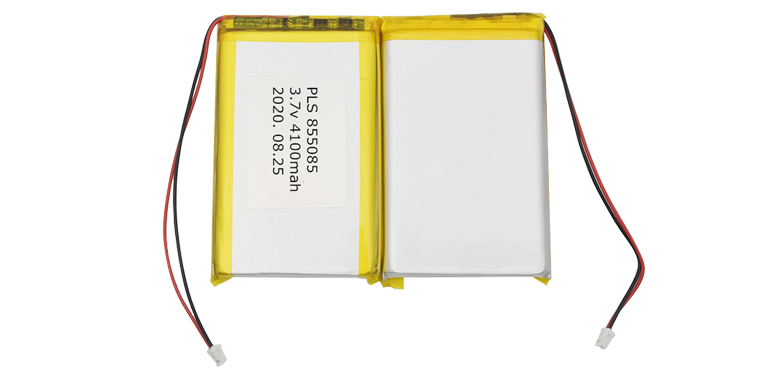

855085-4100mah 3.7V Lipo Battery

Name: 855085-4100mah 3.7V Lipo Battery
Brand: PLS Battery Co., Ltd.

PLS855085 is with 8.5*50*85mm(T*W*L) dimension, it is a rechargeable lithium-polymer battery with 4100mah capacity, which is a customized produced model, used for high output electric devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.

PLS Battery, as a professional li polymer battery supplier, is committed to producing high-quality battery li-ion polymer for customers who want to buy lipo battery. Feel free to contact us.

GET A QUOTE

Datasheet Download

Specification of PLS855085 High Capacity 4100mah 3.7V Lipo Battery

Item	Rating	Note
Model	PLS855085	8.55085mm
Nominal Capacity	4100mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	3.70V
Standard Charge Current	0.2C	0.2C, 4.20V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 3.0V cut off.
Maximum Discharge Current	4100mA	1.0C, Continuous Current
	8200mA	2.0C, Peak Current
Weight	79g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
