8546110-4500mah 3.7V Lipo Battery

Name: 8546110-4500mah 3.7V Lipo Battery
Brand: PLS Battery Co., Ltd.

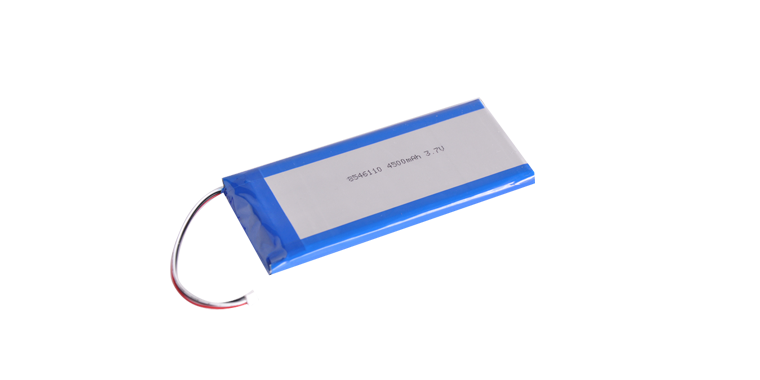

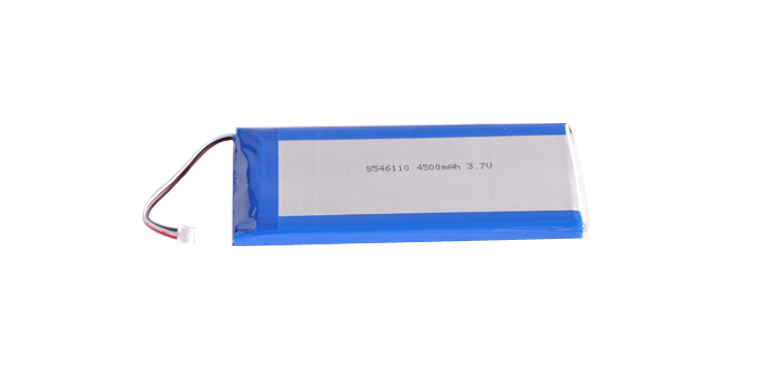

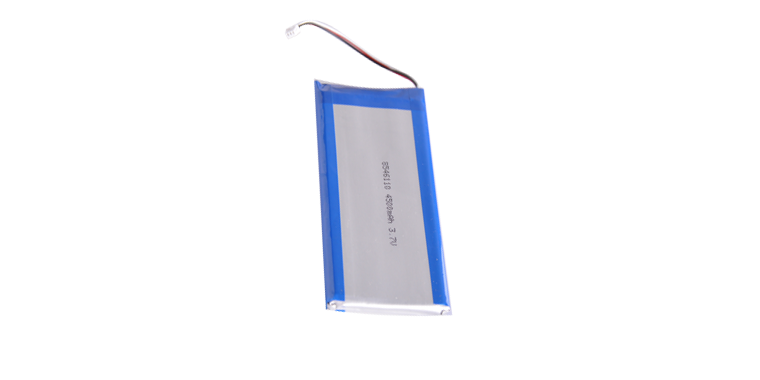

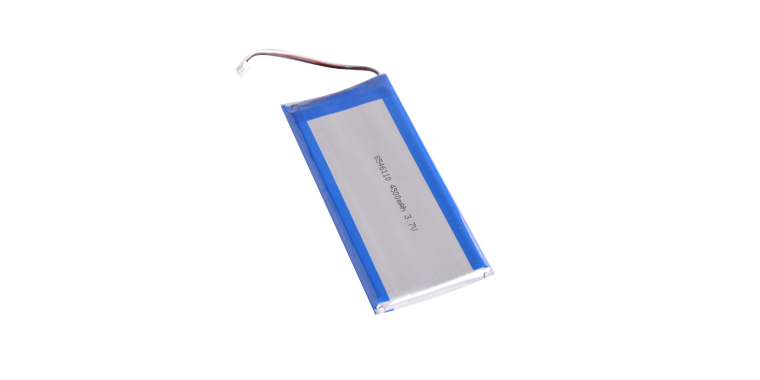

PLS8546110 is with 8.5*46*110mm(T*W*L) dimension, it is a rechargeable lithium-polymer battery with 4500mah capacity, which is a customized produced model, used for high output electric devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.

Our company, which is one of lipo battery manufacturers, supports lithium ion battery wholesale. Any order of lithium polymer batteries will be welcomed. Feel free to contact us.

GET A QUOTE

Datasheet Download

Specification of 8546110-4500mah 3.7V Lipo Battery

Item	Rating	Note
Model	PLS8546110	8.546110mm
Nominal Capacity	4500mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	3.70V
Standard Charge Current	0.2C	0.2C, 4.20V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 3.0V cut off.
Maximum Discharge Current	4500mA	1.0C, Continuous Current
	13500mA	3.0C, Peak Current
Weight	81g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
