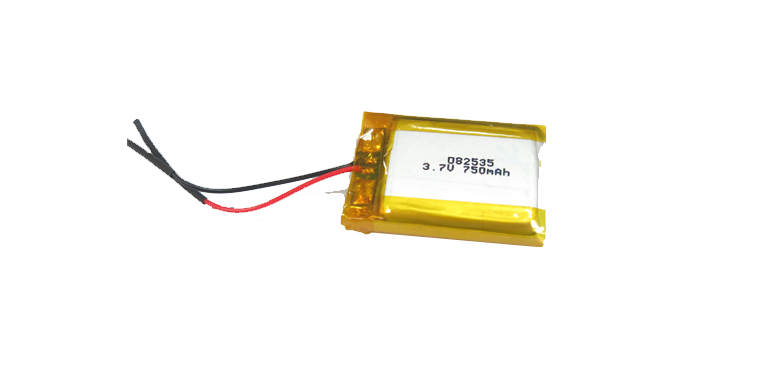

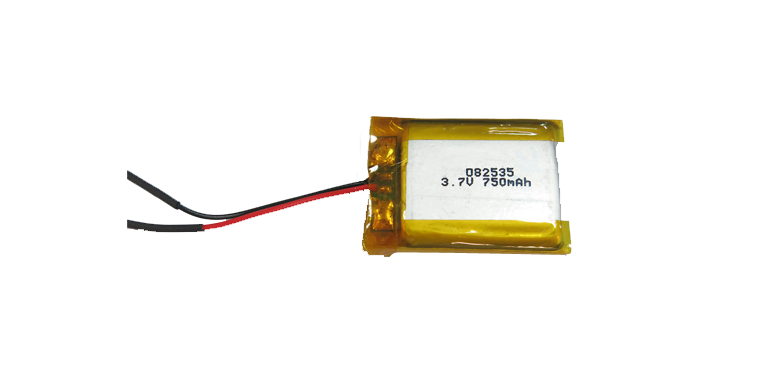

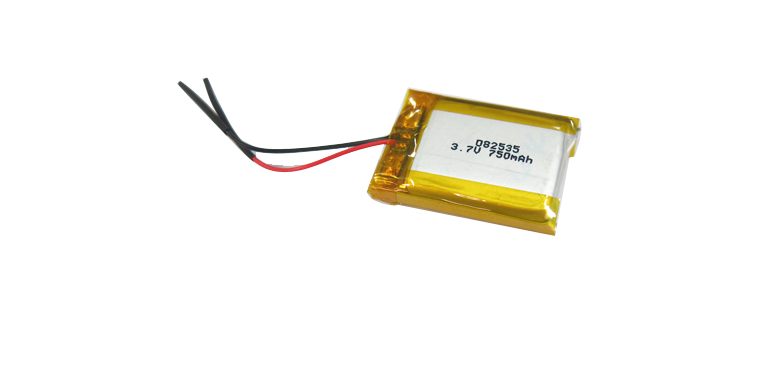

852535-750mah 3.7V Lipo Battery

PLS852535 is with 8.5*25*35mm(T*W*L) dimension, it is a 750mah capacity rechargeable lithium polymer battery, which is a commonly produced model, used for 3C digital devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.


PLS Battery, as a lithium ion battery factory, is able to produce qualified and rechargeable lithium polymer battery. If you want to buy PLS lithium polymer batteries, feel free to contact us.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 852535-750mah 3.7V Lipo Battery

Item

Rating

Note

Model

PLS852535

8.5*25*35mm

Nominal Capacity

750mAh

Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage

3.70V


Standard Charge Current

0.2C

0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 3.0V cut off.

Maximum Discharge Current

750mA

1.0C, Continuous Current


2250mA

3.0C, Peak Current

Weight

14.5g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
