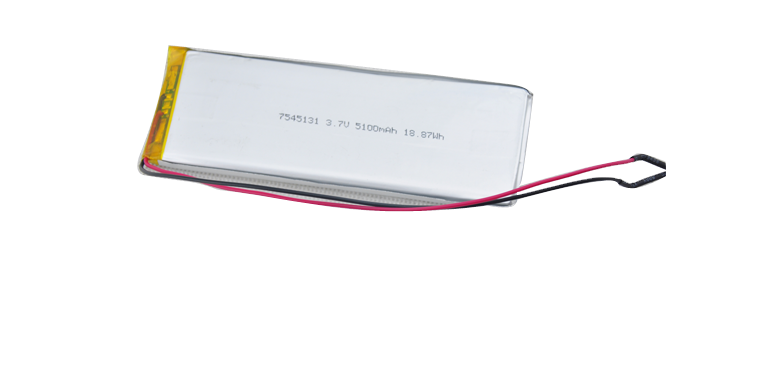

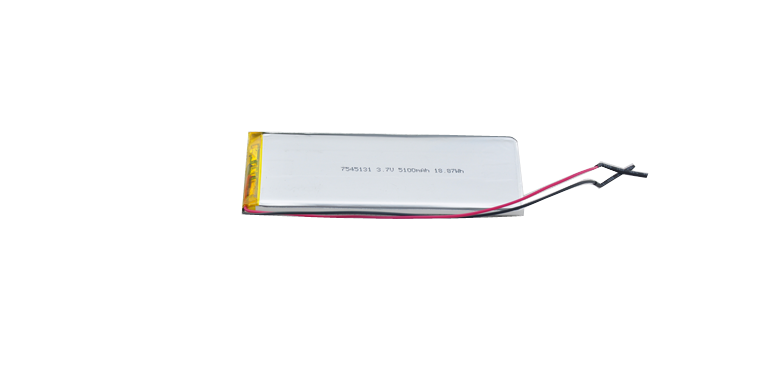

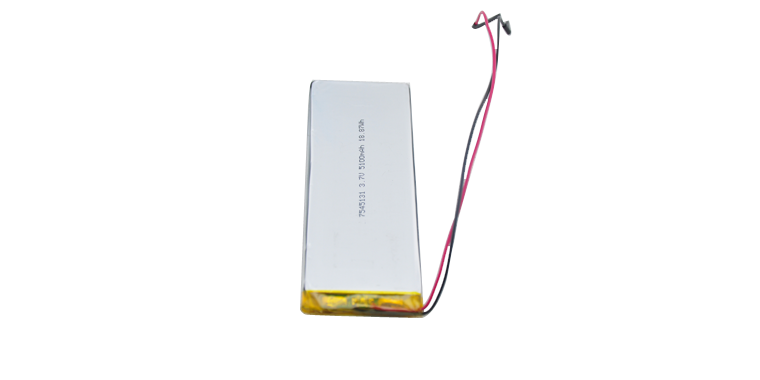

7545131-5100mah 3.7V Lipo Battery

Name: 7545131-5100mah 3.7V Lipo Battery
Brand: PLS Battery Co., Ltd.

PLS7545131 is with 7.5*45*131mm(T*W*L) dimension, it is a 3.7v rechargeable lithium polymer battery with 5100mah capacity, which is a customized produced model, used for high output electric devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.

PLS Battery, as one of lithium ion battery manufacturers, spares no efforts to promote the development of lipo battery industry and has made great progresses in the market of rechargeable lithium polymer battery. If you want to know more information, please contact us.

GET A QUOTE

Datasheet Download

Specifications of 7545131-5100mah 3.7V Lipo Battery

Item	Rating	Note
Model	PLS7545131	7.545131mm
Nominal Capacity	5100mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	3.70V
Standard Charge Current	0.2C	0.2C, 4.20V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 3.0V cut off.
Maximum Discharge Current	5100mA	1.0C, Continuous Current
	15300mA	3.0C, Peak Current
Weight	105g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
