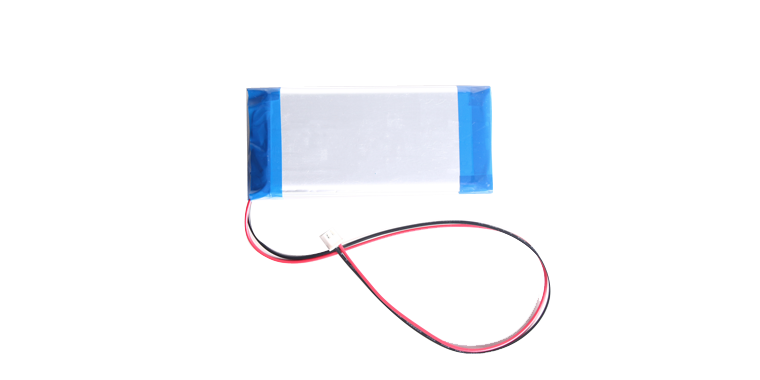

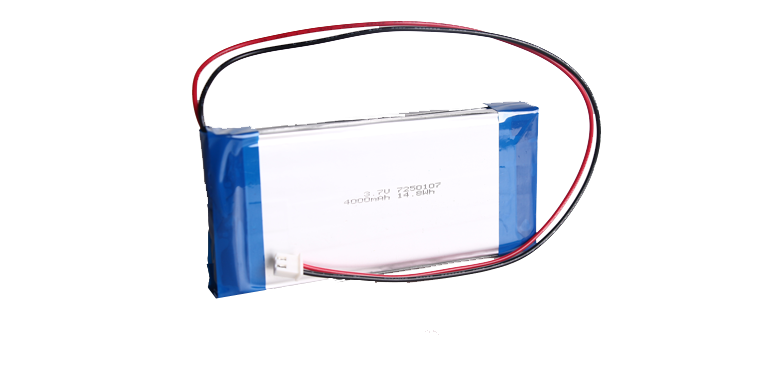

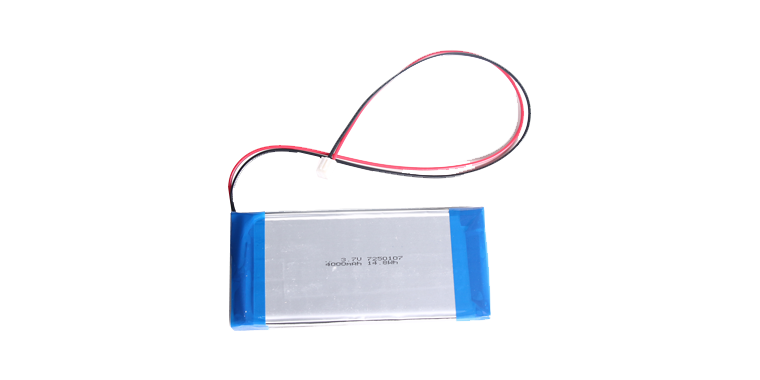

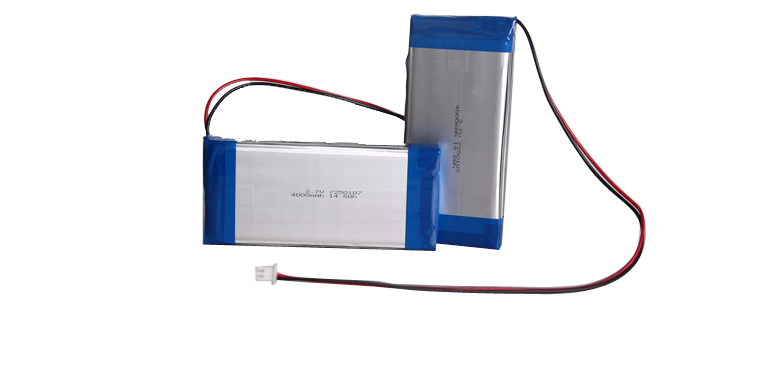

7250107-4000mah 3.7V Lipo Battery

PLS7250107 is with 7.2*50*107mm(T*W*L) dimension, which is often used for high output electric devices. It has high performances, which can make you satisfied.


PLS7250107 is a rechargeable lithium polymer battery with 4000mah capacity, which is a customized produced model. Your requirements of customizing size, PCB, wire, connectors are welcomed in our lithium ion battery factory. If you want to know more about lithium polymer batteries, please contact us.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specifications of 7250107-4000mah 3.7V Lipo Battery


Item

Rating

Note

Model

PLS7250107

7.2*50*107mm

Nominal Capacity

4000mAh

Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage

3.70V


Standard Charge Current

0.2C

0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 3.0V cut off.

Maximum Discharge Current

4000mA

1.0C , Continuous Current


12000mA

3.0C , Peak Current

Weight

77g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
