603450-1200mah 3.7V Lipo Battery

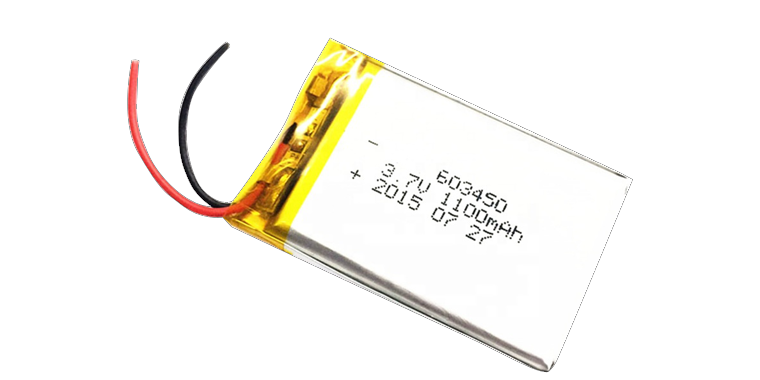

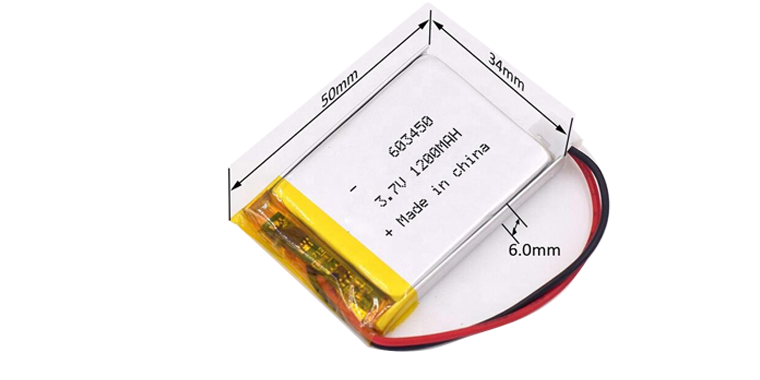

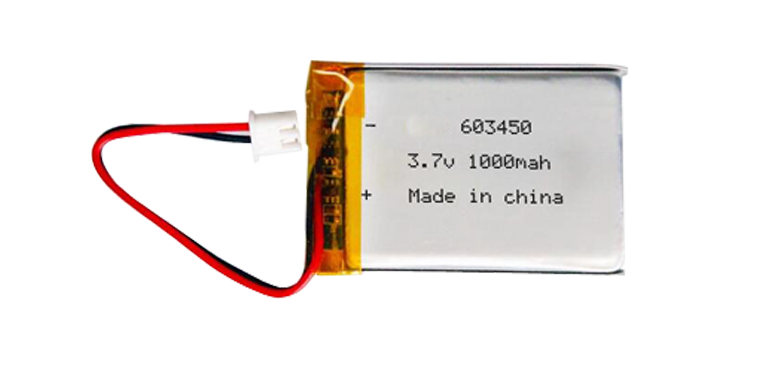

PLS603450 is with 6.0*34*50mm(T*W*L) dimension, it is a rechargeable lithium polymer battery with 1200mah capacity, which is a common produced model, usually with stock, used for 3C digital devices such as GPS tracker. Your requirements of customizing size, PCB, wire, connectors are welcomed.


PLS Battery, as one of lithium ion battery suppliers, is spaecialized in producing micro lipo battery with high performance and if you want to know more about battery li ion polymer, feel free to contact us.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of PLS603450 3.7V 1200mah GPS Rechargeable Lipo Battery


Item

Rating

Note

Model

PLS603450

6.0*34*50mm

Nominal Capacity

1200mAh

Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage

3.70V


Standard Charge Current

0.2C

0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 3.0V cut off.

Maximum Discharge Current

1200mA

1.0C , Continuous Current


3600mA

3.0C , Peak Current

Weight

23g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
