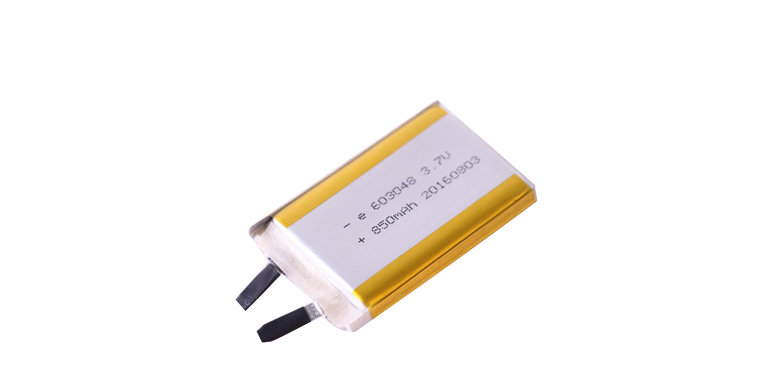

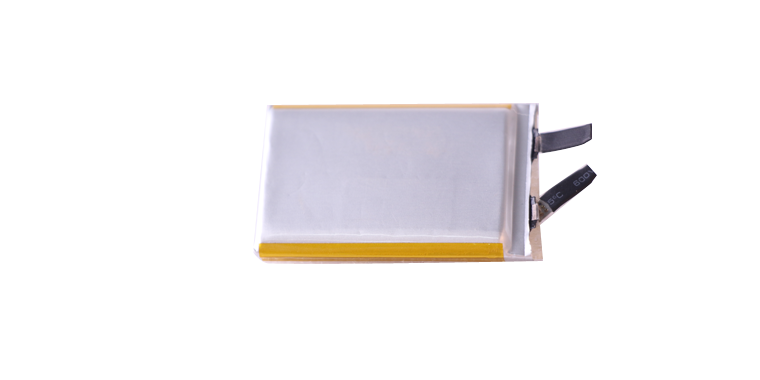

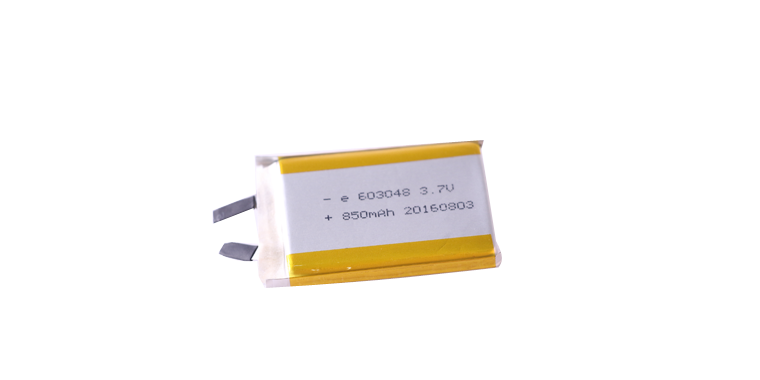

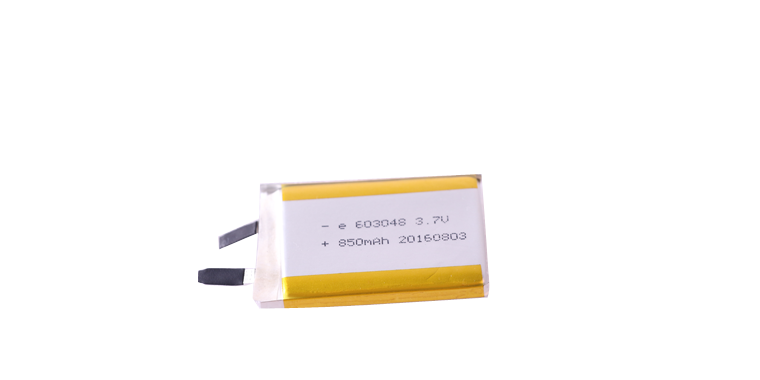

603048-850mah 3.7V Lipo Battery

603048-850mah 3.7V Lipo Battery

PLS603048 is with 6.0*30*48mm(T*W*L) dimension, it is an 850mah capacity rechargeable lithium polymer battery, which is a common produced model, used for 3C digital devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.


In our lithium ion battery factory, the capacity of lithium polymer batteries can be customized according to your needs. And  if you want to buy rechargeable lithium polymer battery, feel free to contact us.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 603048-850mah 3.7V Lipo Battery

Item

Rating

Note

Model

PLS603048

6.0*30*48mm

Nominal Capacity

850mAh

Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage

3.70V


Standard Charge Current

0.2C

0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 3.0V cut off.

Maximum Discharge Current

850mA

1.0C, Continuous Current


2550mA

3.0C, Peak Current

Weight

17.5g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
