553562-1200mah 3.7V Lipo Battery

Name: 553562-1200mah 3.7V Lipo Battery
Brand: PLS Battery Co., Ltd.

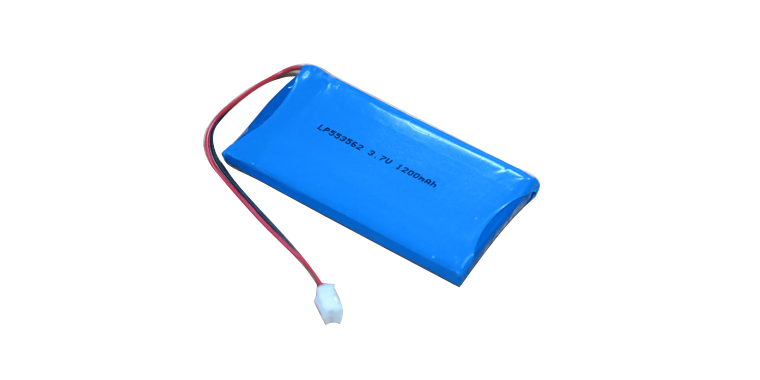

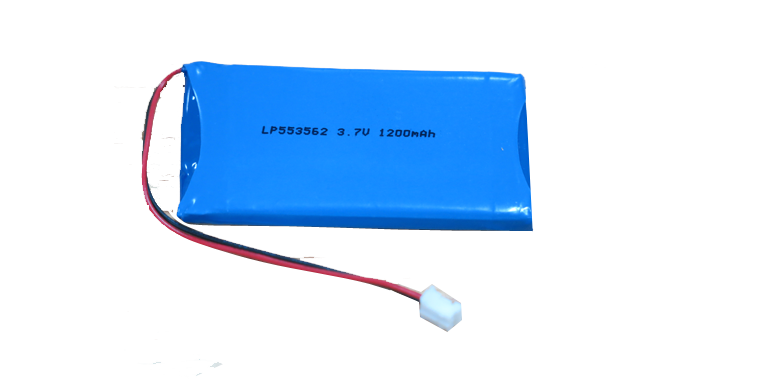

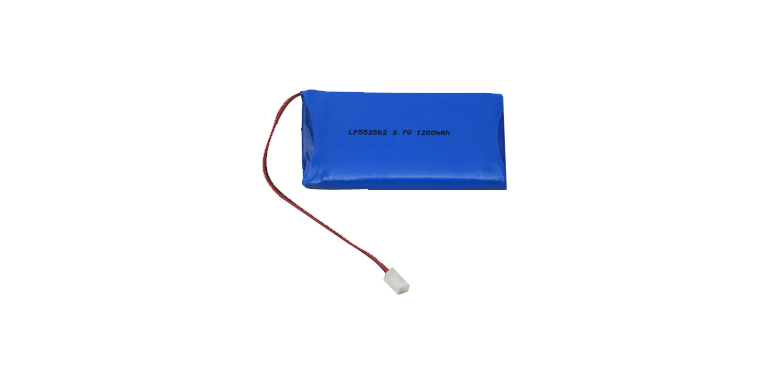

PLS553562 is with 5.5*35*62mm(T*W*L) dimension, it is a rechargeable lithium polymer battery with 1200mah capacity, which is an uncommon produced model, used for 3C digital devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.

Our company, which is one of lipo battery manufacturers, supports lithium ion battery wholesale. Any order of lithium polymer batteries will be welcomed. Feel free to contact us.

GET A QUOTE

Datasheet Download

Specification of 553562-1200mah 3.7V Lipo Battery

Item	Rating	Note
Model	PLS553562	5.53562mm
Nominal Capacity	1200mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	3.70V
Standard Charge Current	0.2C	0.2C, 4.20V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 3.0V cut off.
Maximum Discharge Current	1200mA	1.0C, Continuous Current
	3600mA	3.0C, Peak Current
Weight	23g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
