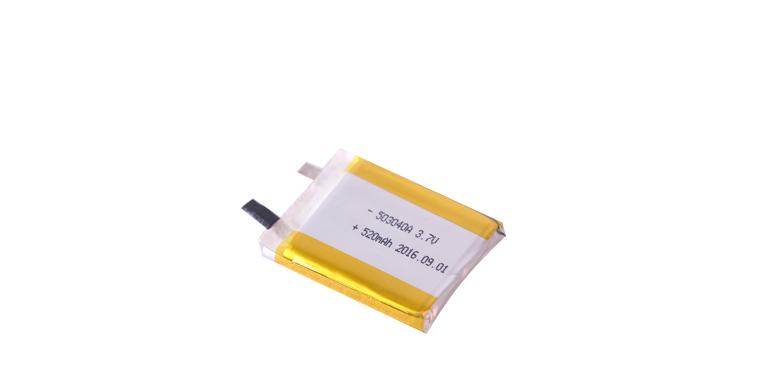

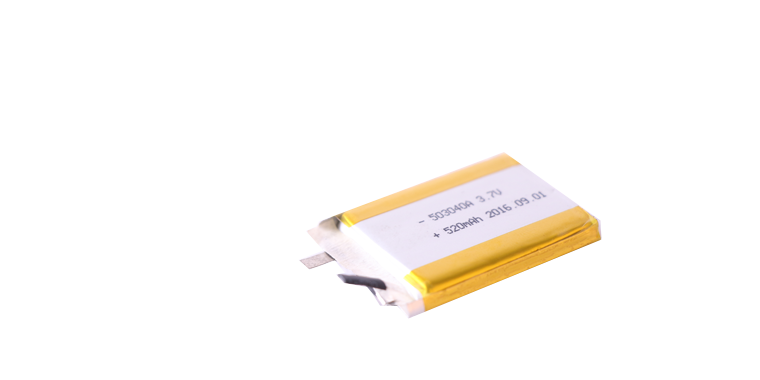

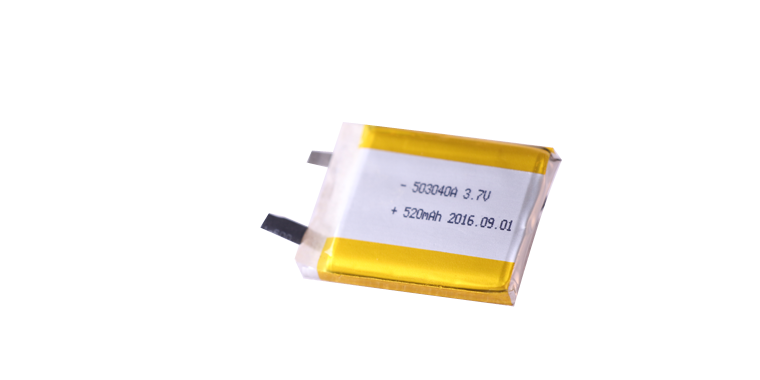

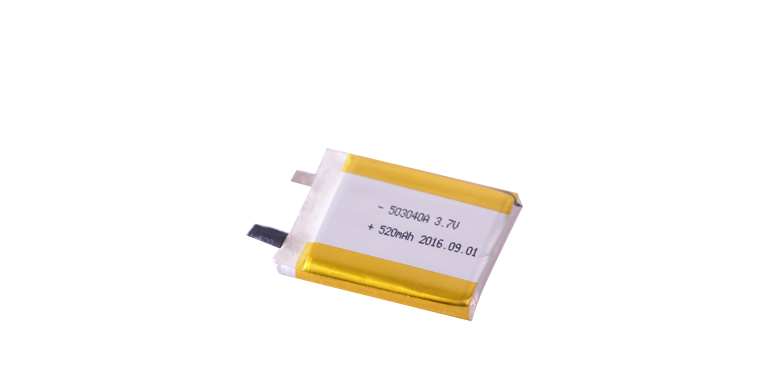

503040-520mah 3.7V Lipo Battery

PLS503040 is with 5.0*30*40mm(T*W*L) dimension, it is a 520mah capacity rechargeable lithium-polymer battery, which is a commonly produced model, used for 3C digital devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.


In our lithium ion battery factory, the capacity of battery li ion polymer can be customized according to your needs. And PLS Battery, as one of lipo battery manufacturers, promises to offer satisfied services for customers.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 503040-520mah 3.7V Lipo Battery

Item

Rating

Note

Model

PLS503040

5.0*30*40mm

Nominal Capacity

520mAh

Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage

3.70V


Standard Charge Current

0.2C

0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 3.0V cut off.

Maximum Discharge Current

520mA

1.0C , Continuous Current


1560mA

3.0C , Peak Current

Weight

11g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
