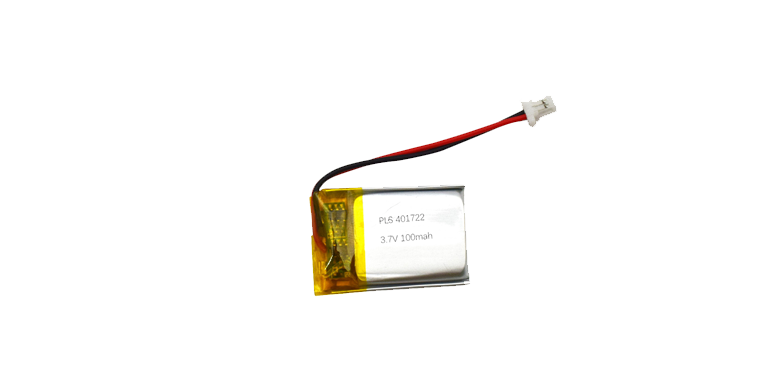

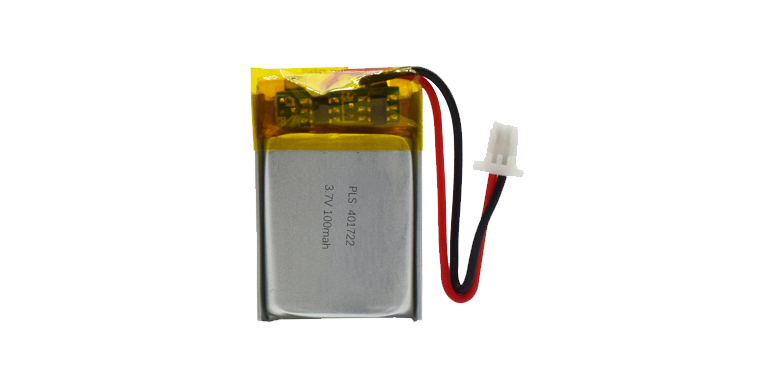

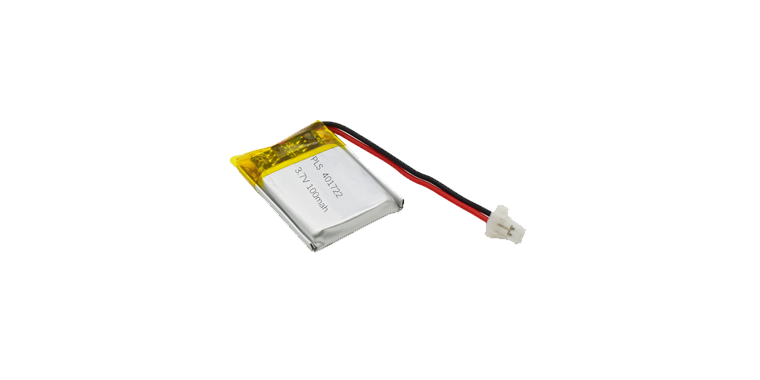

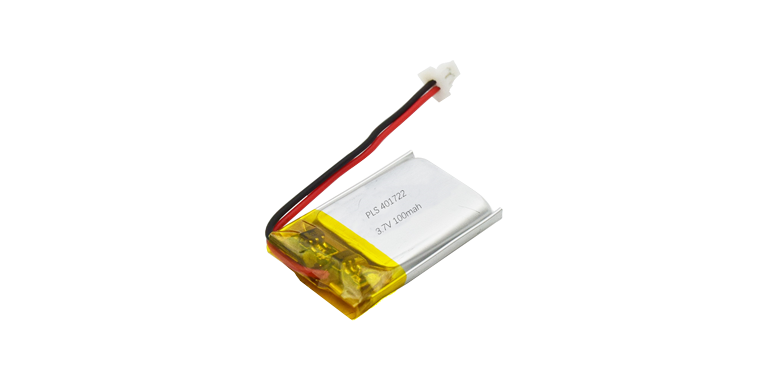

401722-3.7 V 100mah Lipo Battery

PLS401722 3.7 v 100mah lipo battery is with 4.0*17*22mm(T*W*L) dimension, 3.7 v 100mah lipo battery is a small size with 100mah capacity rechargeable lithium polymer batteries, used for 3C digital devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.


PLS Battery, as one of lipo battery manufacturers, is committed to producing rechargeable lithium polymer battery and if you want to know more about lithium polymer batteries, feel free to contact us.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 401722-100mah 3.7V Lipo Battery

Item

Rating

Note

Model

PLS401722

4.0*17*22mm

Nominal Capacity

100mAh

Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage

3.70V


Standard Charge Current

0.2C

0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 3.0V cut off.

Maximum Discharge Current

100mA

1.0C, Continuous Current


300mA

3.0C, Peak Current

Weight

1.9g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
