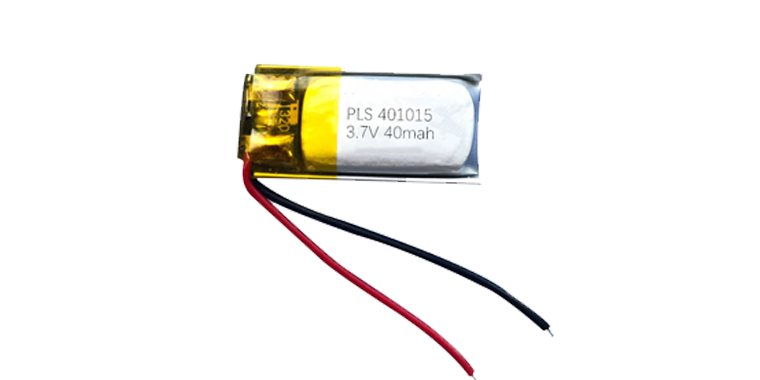

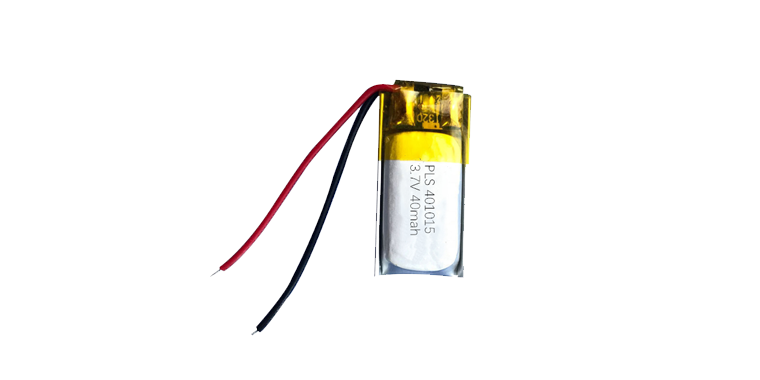

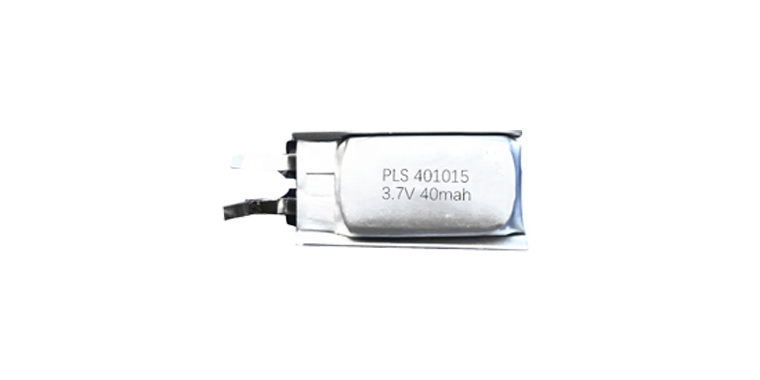

401015-40mah 3.7V Lipo Battery

PLS401015 is with 4.0*10*15mm(T*W*L) dimension, it is a small size with 40mah capacity rechargeable lithium polymer batteries, used for 3C digital devices.


Your requirements of customizing size, PCB, wire, connectors are welcomed. PLS Battery, as one of lithium ion battery suppliers, is able to produce qualified battery li ion polymer for sale and if you want to buy cheap lipo batteries, feel free to contact us.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification OF 401015-40mah 3.7V Lipo Battery

Item

Rating

Note

Model

PLS401015

4.0*10*15mm

Nominal Capacity

40mAh

Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage

3.70V


Standard Charge Current

0.2C

0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 3.0V cut off.

Maximum Discharge Current

40mA

1.0C, Continuous Current


120mA

3.0C, Peak Current

Weight

1.1g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
