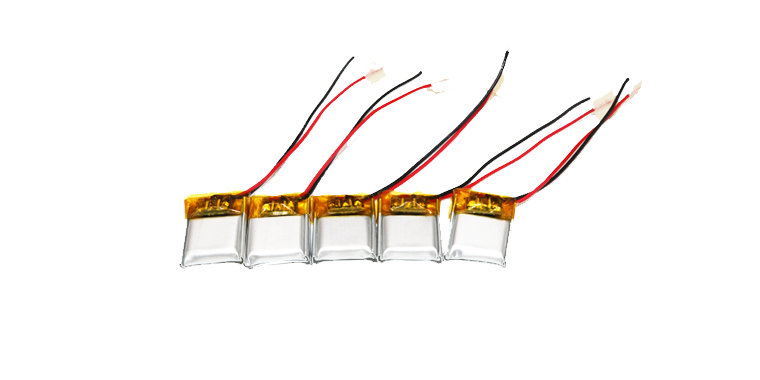

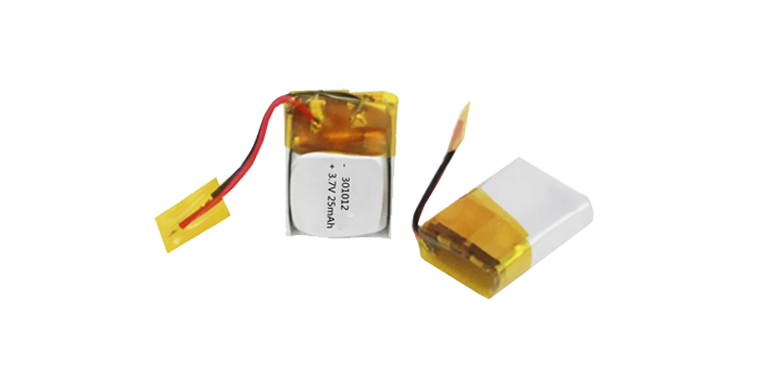

301012-25mah 3.7V Lipo Battery

PLS301012 is with 3.0*10*12mm(T*W*L) dimension, it is a small size with 25mah capacity rechargeable lithium polymer batteries. Your requirements of customizing size, PCB, wire, connectors are welcomed.

PLS Battery, as one of lithium ion battery suppliers, is able to produce different capacities of lithium polymer batteries for customers. And our li polymer battery price is competitive in the market. Feel free to contact us.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 301012-25mah 3.7V Lipo Battery

Item

Rating

Note

Model

PLS301012

3.0*10*12mm

Nominal Capacity

25mAh

Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage

3.70V


Standard Charge Current

0.2C

0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 3.0V cut off.

Maximum Discharge Current

25mA

1.0C, Continuous Current


75mA

3.0C, Peak Current

Weight

1.1g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
