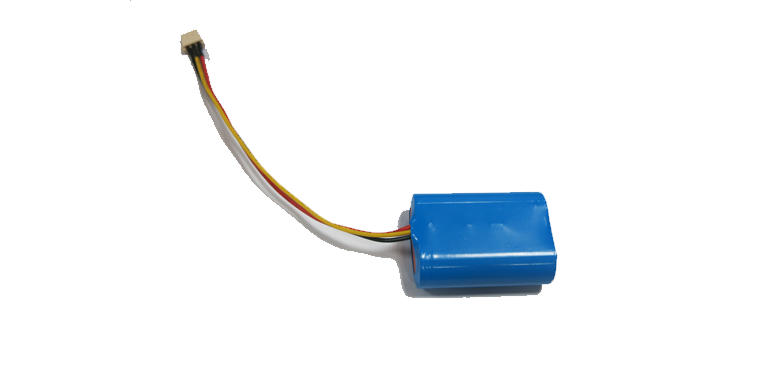

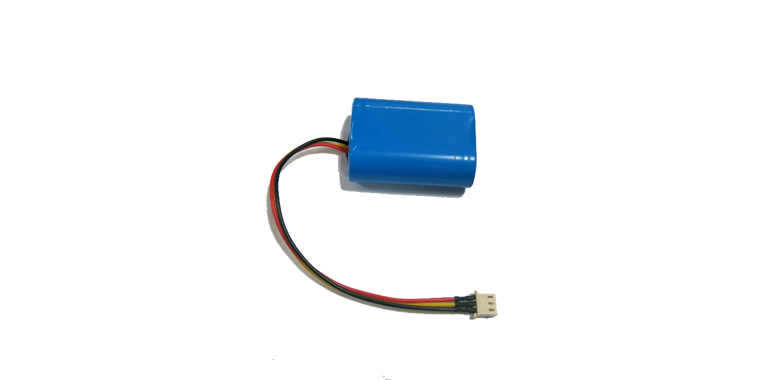

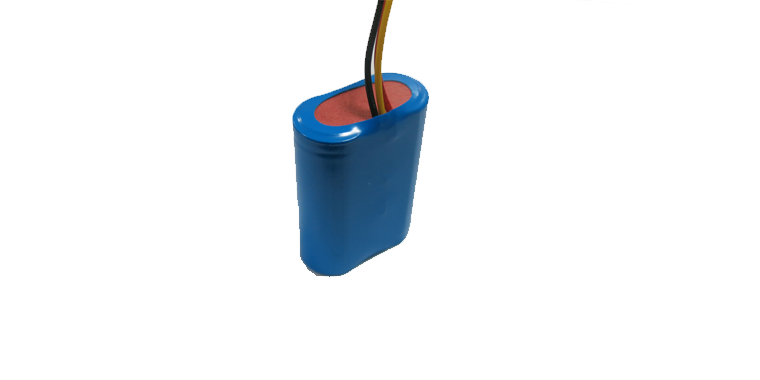

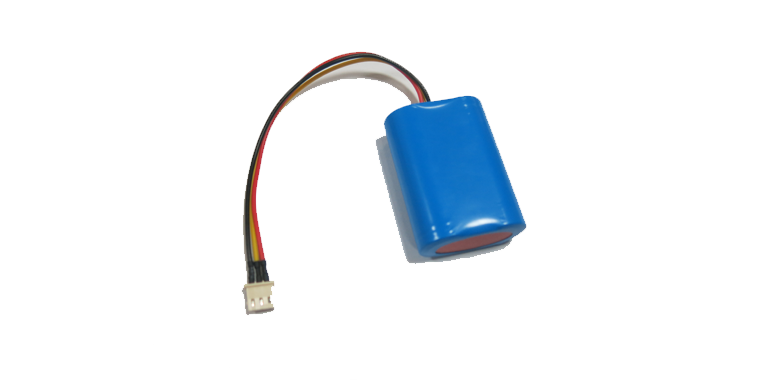

2S1P ICR18500 7.4V 1200Mah Li Ion Battery Pack

2S1P ICR18500 7.4V 1200mah li-ion battery pack is a customized battery with ICR18500 3.7v 1200mah battery cells.

This lithium ion pack is 7.4v with PVC and connector. In our lithium ion battery factory, the battery dimension, PCB, wire length, connectors can be adjusted according to your request. Please come to us for more information about lithium battery packs

Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 2S1P ICR18500 7.4V 1200Mah Li-Ion Battery Pack

Model2S1P 7.4V 1200mAh 18500 Battery Pack
Nominal Voltage7.4V
Nominal Capacity1200mAh
Charge cut-off voltage8.4V
Discharge cut-off voltage6.0V
CellsPLS 18500 3.7v 1200mah
Assembly2S1P pack
Dimensions1 lines* 2 rows of 18500 cells

Customization of 2S1P ICR18500 7.4V 1200Mah Li-Ion Battery Pack

VoltageTimes of 3.7V
CapacityAccording to the battery cell capacity and quantity in parallel
Brand ChoosePLS, Sanyo, LG, Sony, Panasonic, Samsung original cells
Cell size14500, 18500, 18650, 26650, 32650, etc.
DimensionAccording to the dimension and quality of cells and ways of assembly
BMS2-100A boards, can have LED/LCD display, USB charging connectors, communication/ balance according to requirements
Wire/ConnectorJST, MOLEX, XT60, XT90 /Anderson 30A,50A,120A, Aviation/Canon, DC Connector, bare wire etc.
EnclosuresWith/without enclosures
ColorPVC or enclosure color can be customized
OEM LogoYes
FrameWith/without enclosures
ChargerCan provide matching chargers
Lifetime300-500 cycles
Delivery time7-10days for samples, 15-20days for bulk production
DeliveryBy express (DHL, FedEx, UPS), air, and seal accordingly

Golf carts, cleaning vehicles, electric hospital beds, electric wheelchairs, electric scooters, oxygen respirators; renewable energy storage packs; communication station equipment; UPS; remote control electric planes, cars, boats; Robot; miner lights; LED lights, etc.
