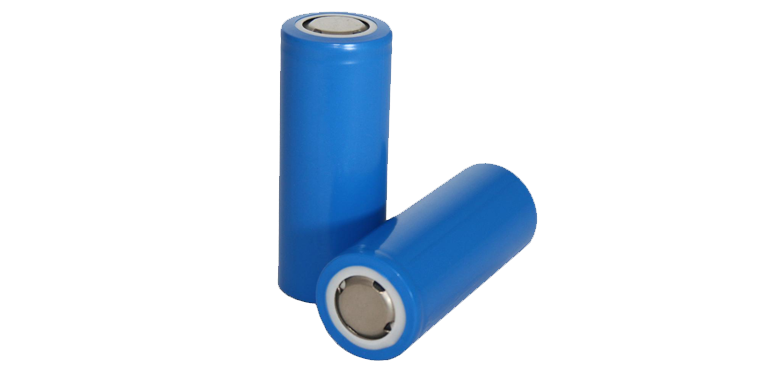

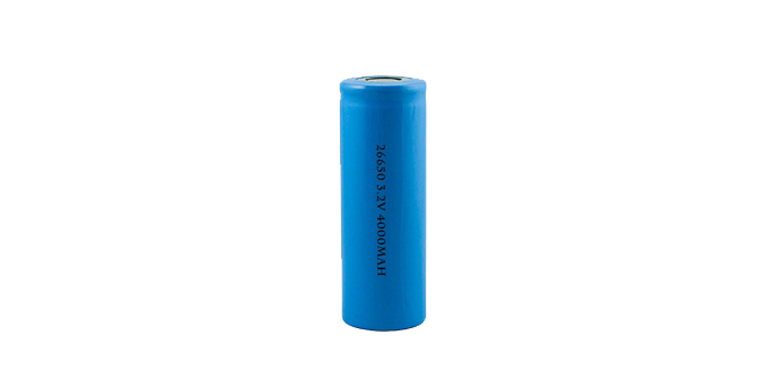

26650-4000mah 3.2V 4000mah 8A LiFePO4 Battery Cell

PLS IFR26650-4000 lifepo4 battery cell is with 26*65mm dimension, 3.2V 4000mah capacity, this is the highest capacity model of lifepo4 26650 battery cell by now, which is common used in flashlights, battery packs.


We, as one of lithium ion battery companies, support different specifications of batteries, such as 12v 12ah lifepo4 battery. Battery cells are continuing produced, lithium battery packs can be customized accordingly. If you want to know more about 26650 lifepo4, please contact us.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 26650-4000mah 3.2V 4000mah 8A LiFePO4 Battery Cell


Item

Rating

Note

Model

IFR26650-4000

26*65mm

Nominal Capacity

4000mAh

Standard discharge, 0.2C

discharge, 2.0V cut-off

Nominal Voltage

3.20V


Standard Charge Current

0.2C

0.2C, 3.65V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 2.0V cut off.

Maximum Discharge Current

2000mA

0.5C, Continuous Current


8000mA

2C , Peak Current

Weight

85g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

flashlights, power supplies, wireless data transmitters, electric thermal clothing, shoes, portable instruments, portable lighting equipment, portable printers, industrial instruments, medical instruments, vehicles etc.
