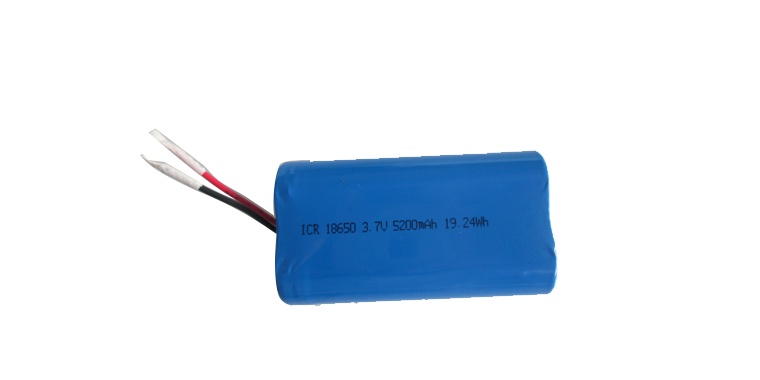

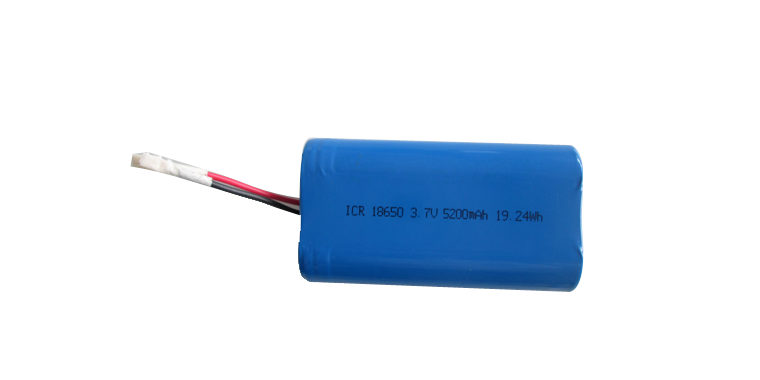

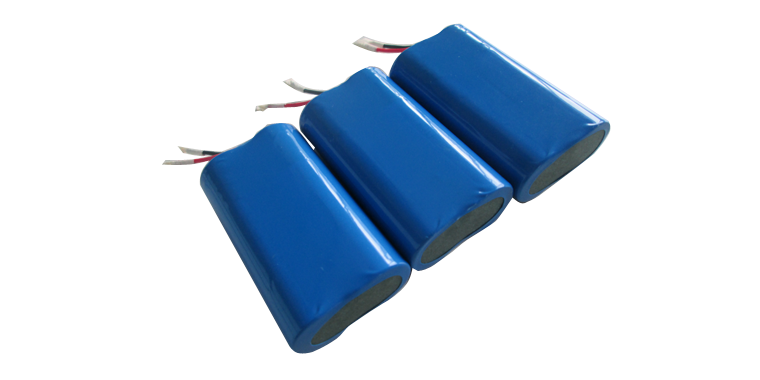

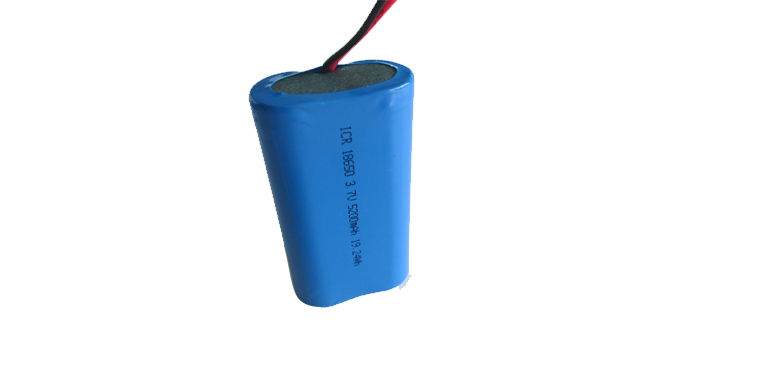

1S2P ICR18650 3.7V 5200Mah Li Ion Battery Pack

1S2P ICR18650 3.7V 5200mah li ion battery pack is a customized battery with ICR18650 3.7v 2600mah battery cells.


This lithium ion battery pack is 5200mAh with PVC. The battery dimension, PCB, wire length, connectors can be adjusted according to your demands for lithium power pack. PLS Battery, as one of lithium ion battery manufacturers, has developed great progresses in the market of batteries. Please come to us for more info.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 1S2P ICR18650 3.7V 5200Mah Li Ion Battery Pack


BrandPLS-Battery
Model1S2P 3.7V 5200mAh 18650 Battery Pack
Nominal Voltage3.7V
Nominal Capacity5200mAh
Charge cut-off voltage4.2V
Discharge cut-off voltage3.0V
CellsPLS 18650 3.7v 2600mah
Assembly1S2P pack
Dimensions1 lines* 2 rows of 18650 cells




Customization of 1S2P ICR18650 3.7V 5200Mah Li Ion Battery Pack

VoltageTimes of 3.7V
CapacityAccording to the battery cell capacity and quantity in parallel
Brand ChoosePLS, Sanyo, LG, Sony, Panasonic, Samsung original cells
Cell size14500, 18500, 18650, 26650, 32650, etc.
DimensionAccording to the dimension and quality of cells and ways of assembly
BMS2-100A boards, can have LED/LCD display, USB charging connectors, communication/ balance according to requirements
Wire/ConnectorJST, MOLEX, XT60, XT90 /Anderson 30A,50A,120A, Aviation/Canon, DC Connector, bare wire etc.
EnclosuresWith/without enclosures
ColorPVC or enclosure color can be customized
OEM logoYes
FrameWith/without enclosures
ChargerCan provide matching chargers
Lifetime300-500 cycles
Delivery time7-10days for samples, 15-20days for bulk production
DeliveryBy express (DHL, FedEx, UPS), air, and seal accordingly
Application

Golf carts, cleaning vehicles, electric hospital beds, electric wheelchairs, electric scooters, oxygen respirators; renewable energy storage packs; communication station equipment; UPS; remote control electric planes, cars, boats; Robot; miner lights; LED lights, etc.
