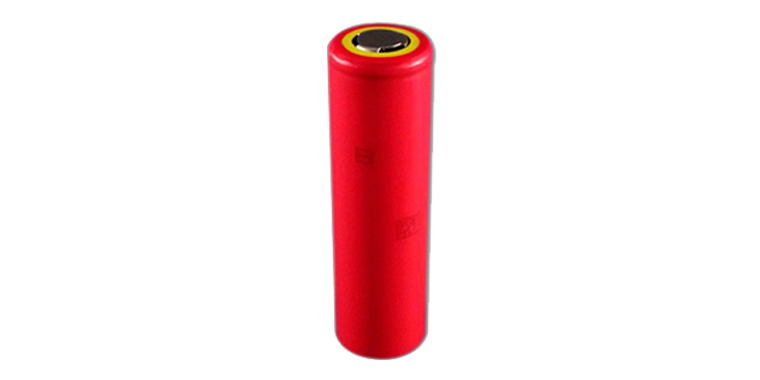

18650-NSX 3.6V 2500mah 20A Li Ion Battery Cell

18650-NSX 3.6V 2500mah 20A Li Ion Battery Cell

Sanyo UR18650NSX is a new cell with improved chemistry which is with 2600mah capacity and 20A discharge current. This 18650 model is a chemical mix-up of high capacity(NCR18650E) and high power(UR18650RX) cells. In official tests by Sanyo, the cell performs pretty well all the way up to a 25A discharge rating. Customers consider this 18650-NSX battery a slight improvement above the Samsung 18650 25E and LG 18650 HE2 and HE4.


PLS Battery, as a lithium ion battery factory, provides different specifications of lithium-ion battery cell. And our lithium ion battery cell price is competitive in the market.  If you want to buy sanyo lithium ion battery, please contact us.


Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Details of 18650-NSX 3.6V 2500mah 20A Li-Ion Battery Cell

Product NameSanyo UR18650NSX 2600mah 20A 18650 High Drain Battery
BrandSanyo
ModelUR18650NSX
Dimension18650


Specifications of 18650-NSX 3.6V 2500mah 20A Li-Ion Battery Cell

  • Max continuous discharge: 20A

  • Standard continuous charge: 1.75A

  • Capacity: 2600mAh (High Drain)

  • Nominal voltage: 3.6V

  • Full charge voltage: 4.20V±0.05V

  • Discharge temperature: -20°C ~ +75°C

  • Dimensions: Height: 65.0mm±0.5mm. Diameter: 18.0mm±0.5mm

  • Net weight: 45g
