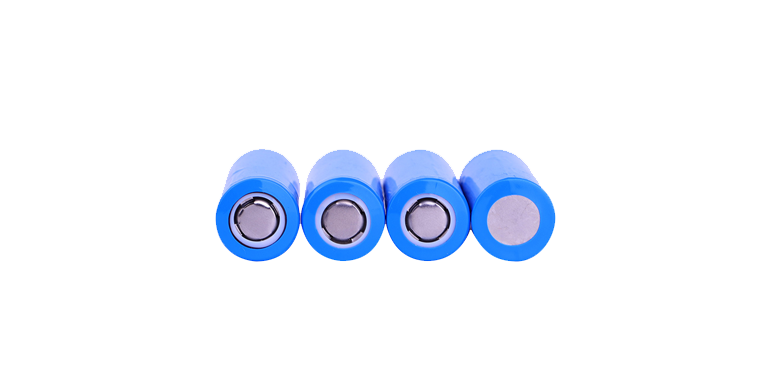

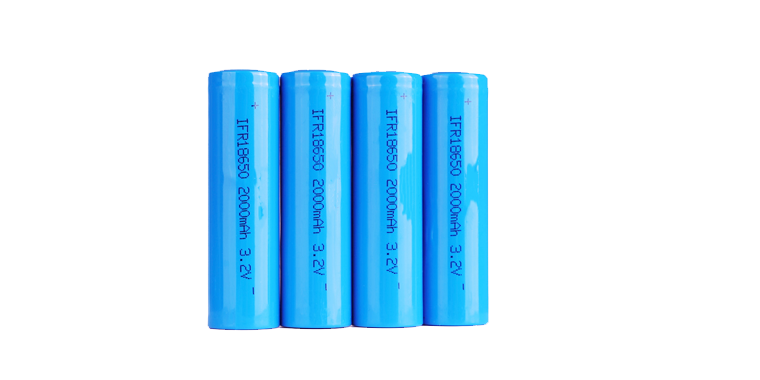

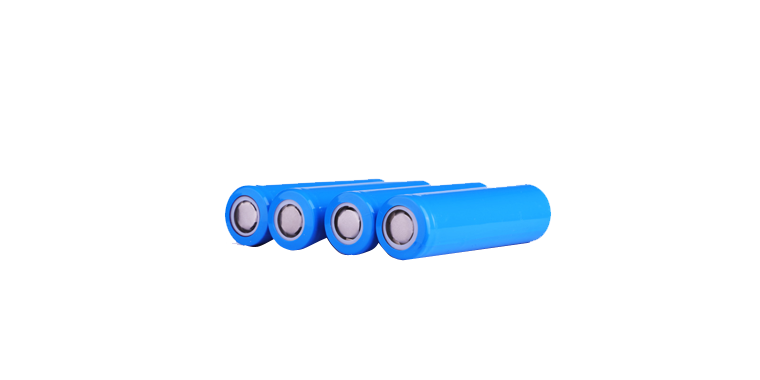

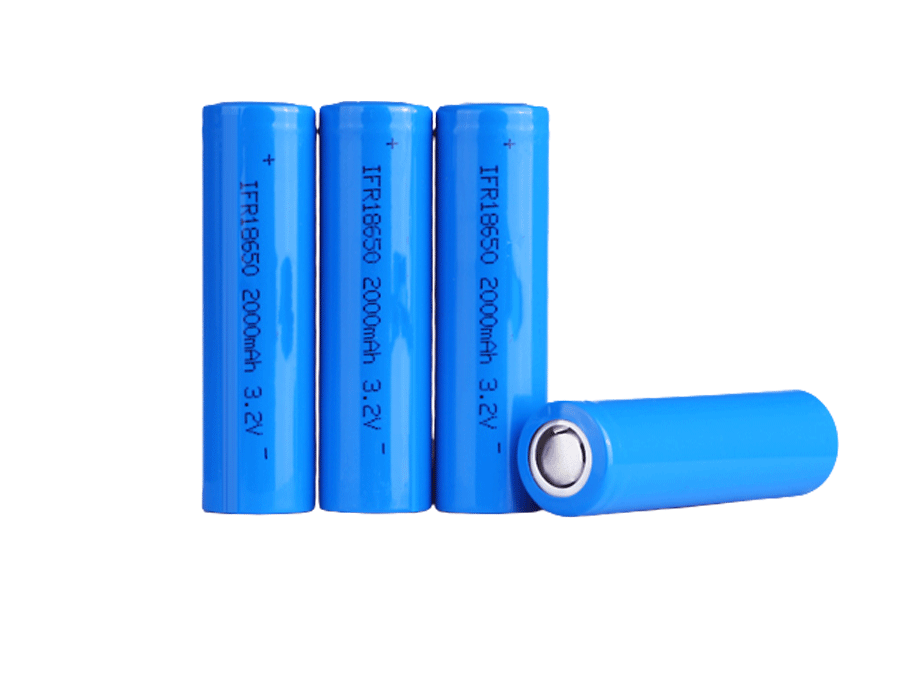

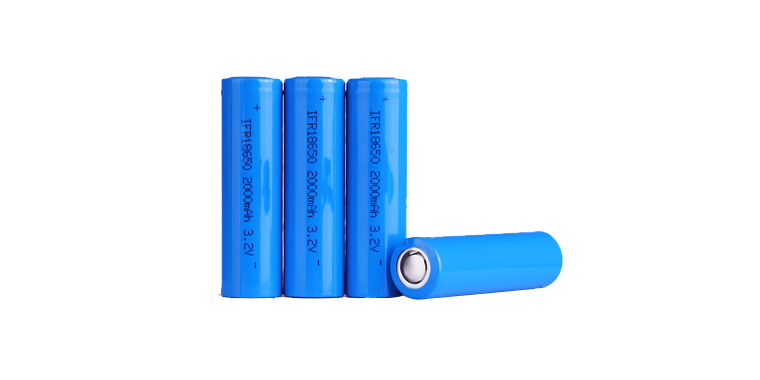

18650-2000mah 3.2V 2000mah LiFePO4 Battery Cell

PLS IFR18650-2000 lifepo4 battery cell is with 18*65mm dimension, 3.2V 2000mah capacity.


The capacity model of PLS IFR18650-2000 lifepo4 battery cell is as high as 2000mah for lifepo4 battery 18650, which is common used in flashlights, battery packs, etc. In our lithium ion battery factory, battery cells are continuing produced and lithium battery packs can be customized accordingly.


Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 18650-2000mah 3.2V 2000mah LiFePO4 Battery Cell


Item

Rating

Note

Model

IFR18650-2000

18*65mm

Nominal Capacity

2000mAh

Standard discharge, 0.2C

discharge, 2.0V cut-off

Nominal Voltage

3.20V


Standard Charge Current

0.2C

0.2C, 3.65V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 2.0V cut off.

Maximum Discharge Current

1000mA

0.5C, Continuous Current


2000mA

1C , Peak Current

Weight

45g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

flashlights, power supplies, wireless data transmitters, electric thermal clothing, shoes, portable instruments, portable lighting equipment, portable printers, industrial instruments, medical instruments, vehicles etc.
