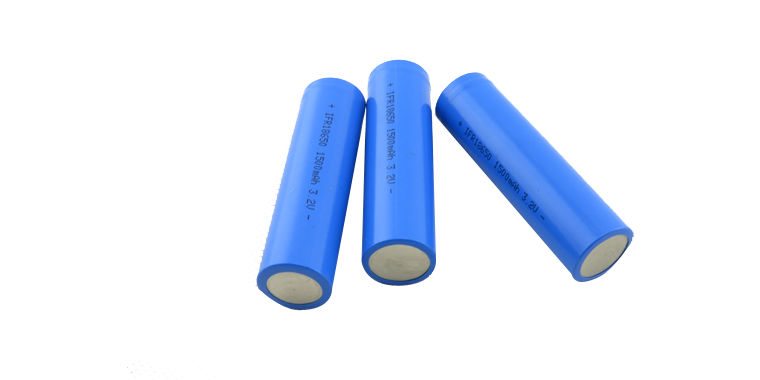

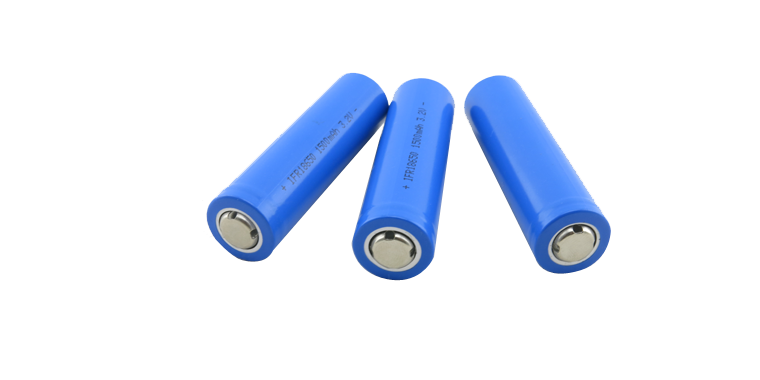

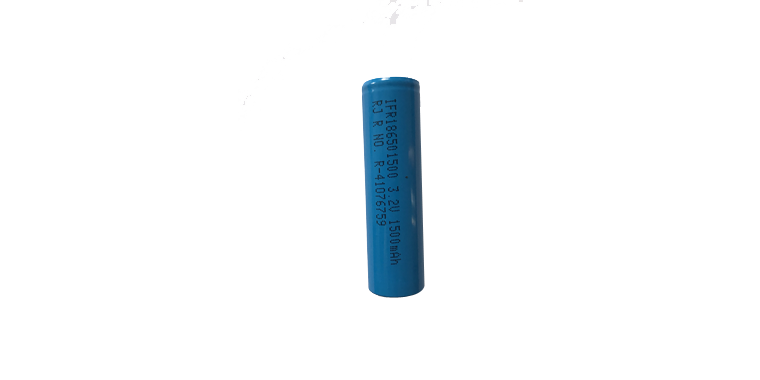

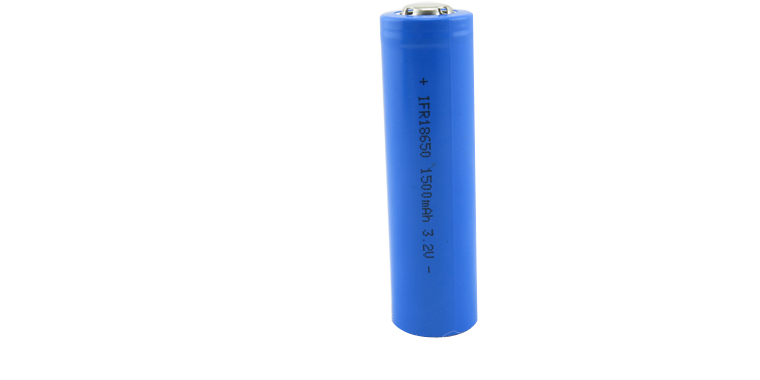

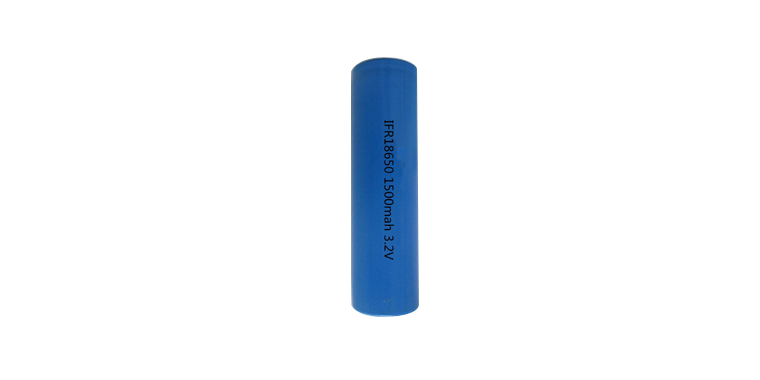

18650-1500mah 3.2V 1500mah 4.5A LiFePO4 Battery Cell

18650-1500mah 3.2V 1500mah 4.5A LiFePO4 Battery Cell

PLS IFR18650-1500 lifepo4 battery cell is with 18*65mm dimension, 3.2V 1500mah capacity, this is a capacity model with 3C discharge, which is common used in flashlights, battery packs, etc.


PLS Battery, as one of lithium ion battery suppliers, is spaecialized in producing lifepo4 lithium battery with high performance. Battery cells are continuing produced, lithium battery packs can be customized accordingly.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 18650-1500mah 3.2V 1500mah 4.5A LiFePO4 Battery Cell


Item

Rating

Note

Model

IFR18650-1500

18*65mm

Nominal Capacity

1500mAh

Standard discharge, 0.2C

discharge, 2.0V cut-off

Nominal Voltage

3.20V


Standard Charge Current

0.2C

0.2C, 3.65V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 2.0V cut off.

Maximum Discharge Current

750mA

0.5C, Continuous Current


4500mA

3C , Peak Current

Weight

45g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

flashlights, power supplies, wireless data transmitters, electric thermal clothing, shoes, portable instruments, portable lighting equipment, portable printers, industrial instruments, medical instruments, vehicles etc.
