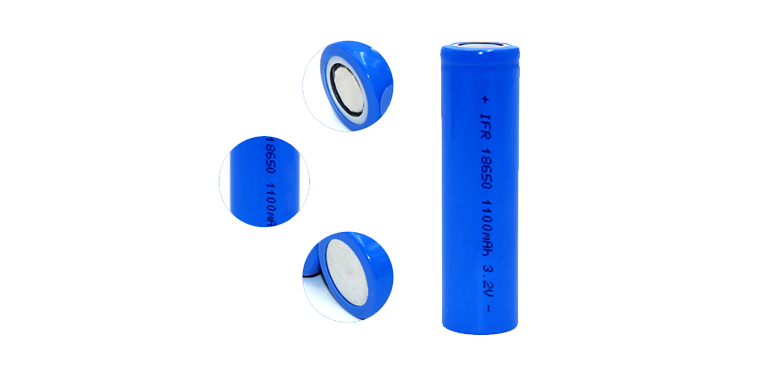

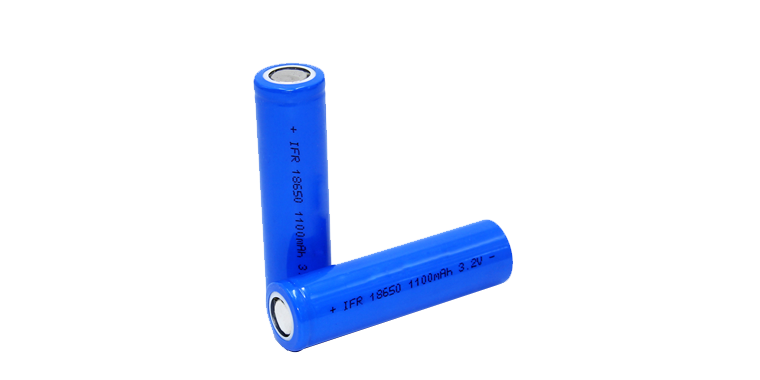

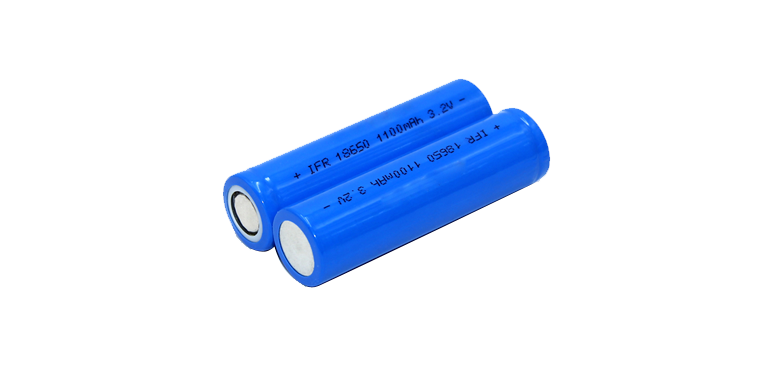

18650-1100mah 3.2V 1100mah 45A LiFePO4 Battery Cell

PLS IFR18650-1100 lifepo4 battery cell is with 18*65mm dimension, 3.2V 1100mah capacity. This is a power model with peak 30A discharge. The continues discharge is 15C and this model is commonly produced as well.


Also we, being one of lithium ion battery companies, can produce some 45C 18650 lifepo4 cells, please contact us if you want to buy any kinds of lifepo4 lithium battery.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 18650-1100mah 3.2V 1100mah 45A LiFePO4 Battery Cell


Item

Rating

Note

Model

IFR18650-1100

18*65mm

Nominal Capacity

1100mAh

Standard discharge, 0.2C

discharge, 2.0V cut-off

Nominal Voltage

3.20V


Standard Charge Current

0.2C

0.2C, 3.65V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 2.0V cut off.

Maximum Discharge Current

16500mA

15C, Continuous Current

33000mA

30C , Peak Current

Weight

45g


Operating Temperature

0~45℃

Charge

-20~60℃

Discharge

Storage Temperature

-20~45℃

1month

-20~35℃

3month

-20~20℃

1year

Application

High power flashlights, power supplies, wireless data transmitters, electric thermal clothing, shoes, portable instruments, portable lighting equipment, portable printers, industrial instruments, medical instruments, vehicle startup packs etc.
