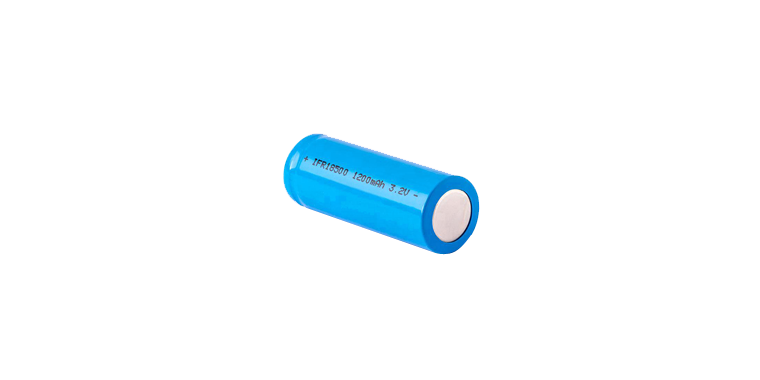

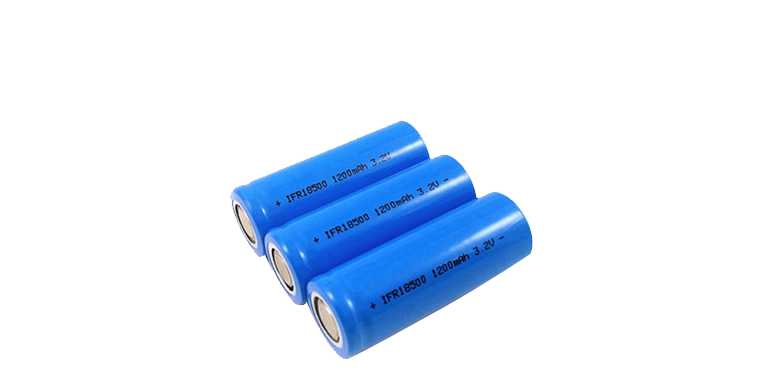

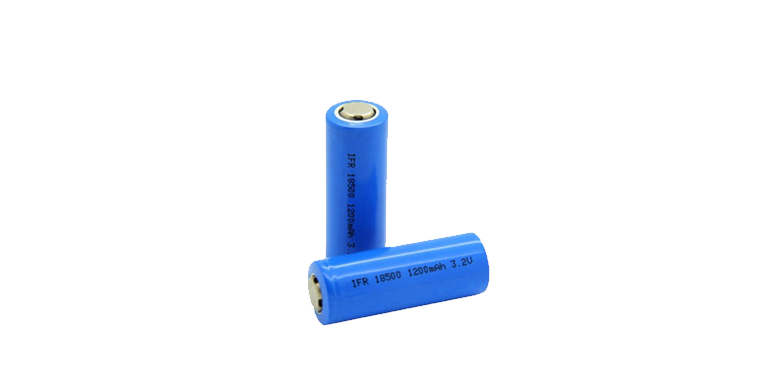

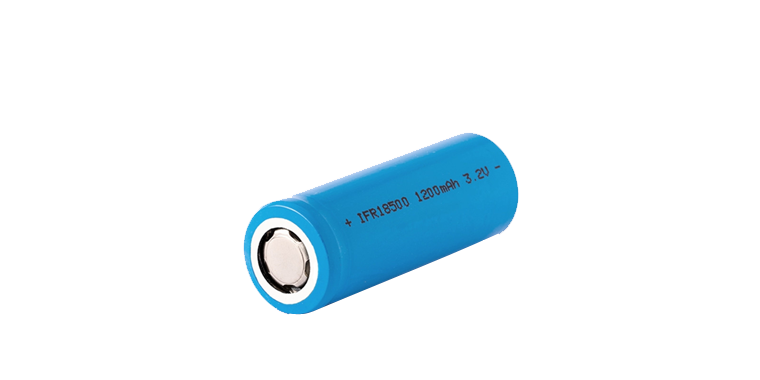

18500-1200mah 3.2V 1200mah 2A LiFePO4 Battery Cell

PLS IFR18500-1200 lifepo4 battery cell is with 18*50mm dimension, 3.2V 1200mah capacity, it is the highest capacity model of 18500 so far, and mature produced with stock for delivery with 1 week for different quantity request. It can be used in electronic fields such as e-cigarettes, toys, security equipment, and vehicles.

Any requests for performances of li fe po battery are welcomed. Also we, being one of lithium ion battery companies, can produce some PLS IFR18500-1200 lifepo4 battery cells, please contact us if you want to buy any kinds of lifepo4 lithium battery.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 18500-1200mah 3.2V 1200mah 2A LiFePO4 Battery Cell


Item

Rating

Note

Model

IFR18500-1200

18*50mm

Nominal Capacity

1200mAh

Standard discharge, 0.2C

discharge, 2.0V cut-off

Nominal Voltage

3.20V


Standard Charge Current

0.2C

0.2C, 3.65V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 2.0V cut off.

Maximum Discharge Current

600mA

0.5C , Continuous Current


1000mA

2.0C , Peak Current

Weight

34g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

Electronic fields such as e-cigarettes, toys, security equipment, and vehicles.

, etc.
