14500-600mah 3.2V 600mah 2A LiFePO4 Battery Cell

14500-600mah 3.2V 600mah 2A LiFePO4 Battery Cell

Name: 14500-600mah 3.2V 600mah 2A LiFePO4 Battery Cell
Brand: PLS Battery Co., Ltd.

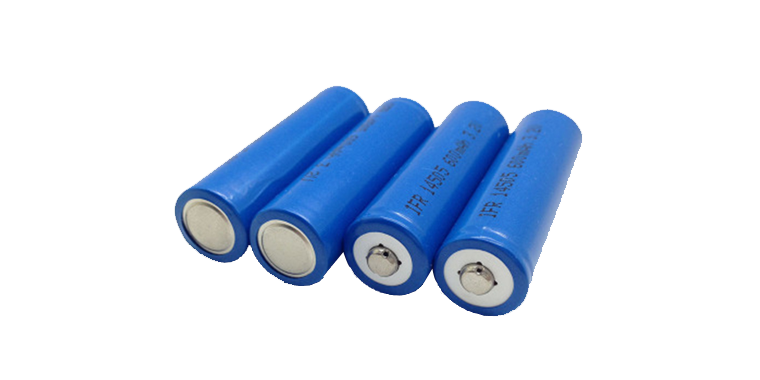

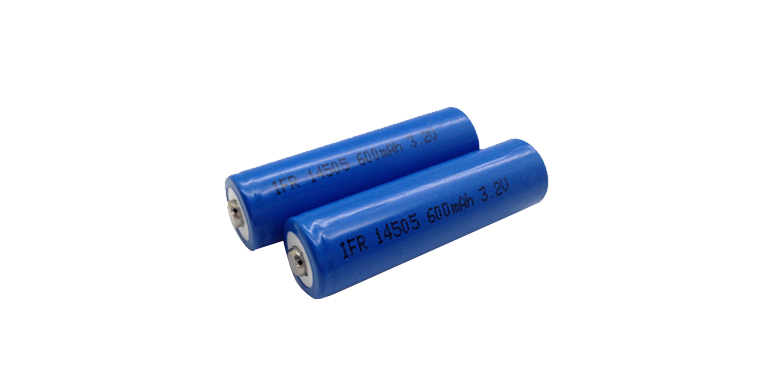

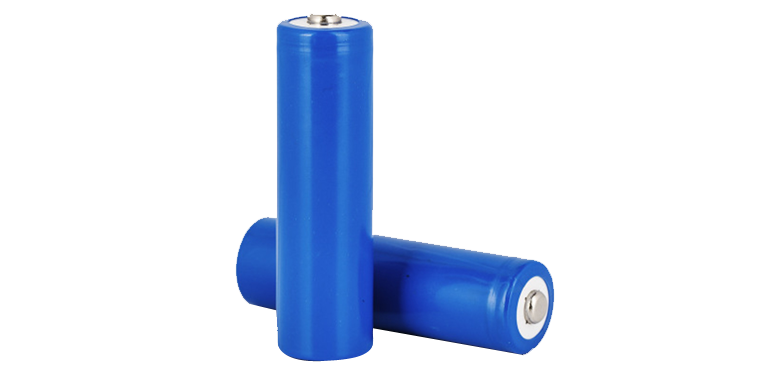

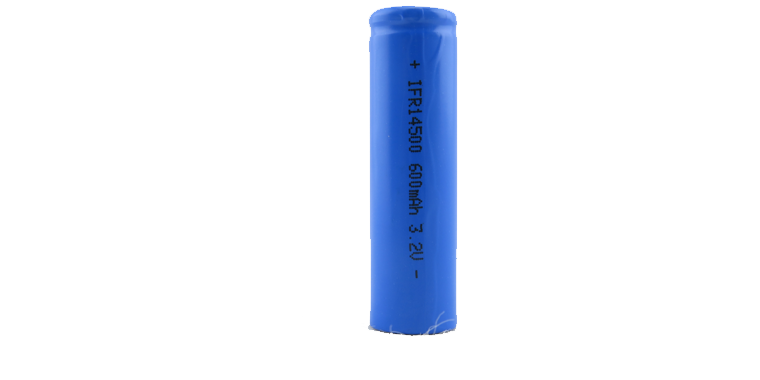

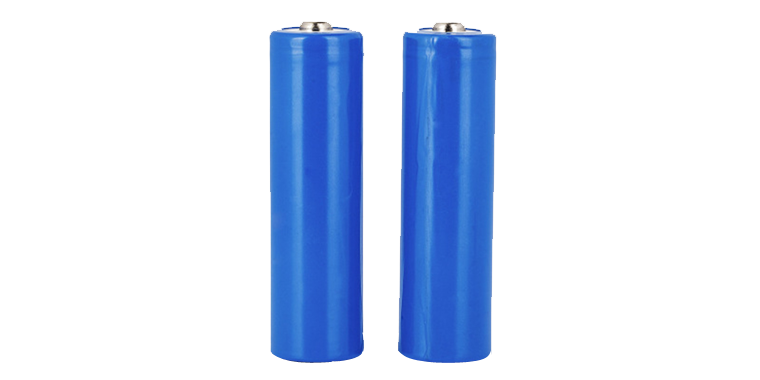

PLS IFR14500 lifepo4 battery cell is with 14*50mm dimension, 3.2V 600mah capacity, this model is usually used for 3V Ni-MH battery replacement, we have this model common produced and can delivery with 1 week for different quantity request.

Our company, which is one of lithium ion battery suppliers, supports li fe po battery wholesale. Any order of lifepo4 lithium battery will be welcomed. Feel free to contact us.

GET A QUOTE

Datasheet Download

Specification of 14500-600mah 3.2V 600mah 2A LiFePO4 Battery Cell

Item	Rating	Note
Model	IFR14500-600	14*50mm
Nominal Capacity	600mAh	Standard discharge, 0.2C discharge, 2.0V cut-off
Nominal Voltage	3.20V
Standard Charge Current	0.2C	0.2C, 3.65V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 2.0V cut off.
Maximum Discharge Current	300mA	0.5C, Continuous Current
	2000mA	3.0C, Peak Current
Weight	16g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Replacement of AA Ni-MH batteries, used for digital cameras, electric cigarettes, etc.
