Specification of 10S5P ICR18650 Battery Pack 36V 10Ah Li Ion
| Brand | PLS-Battery |
| Model | 10S5P 36V 10Ah 18650 Battery Pack |
| Nominal Voltage | 36V |
| Nominal Capacity | 10Ah |
| Charge cut-off voltage | 42V |
| Discharge cut-off voltage | 30V |
| Cells | PLS 18650 3.7v 2000mah |
| Assembly | 10S5P pack |
| Dimensions | 2 lines* 25 rows of 18650 cells |
10S5P ICR18650 Battery Pack 36V 10Ah Li-Ion Features

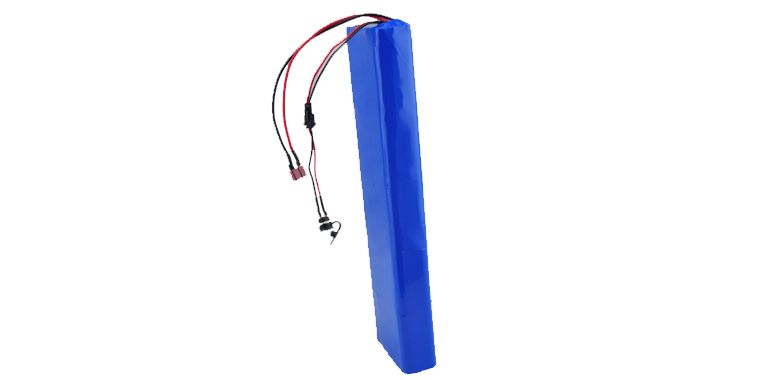

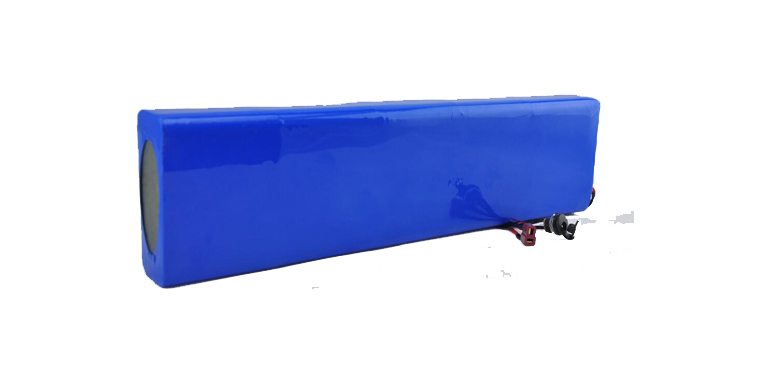

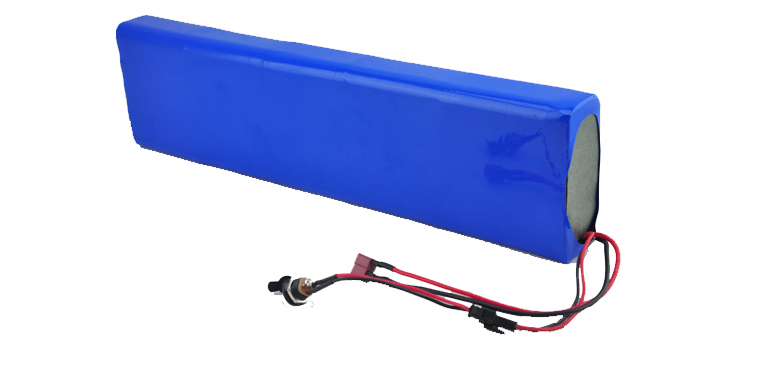

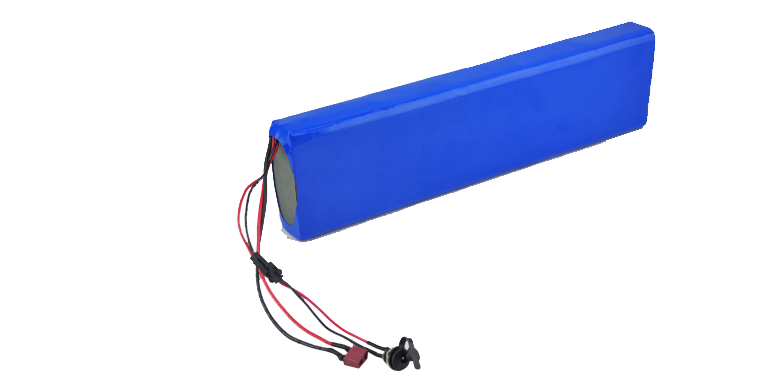

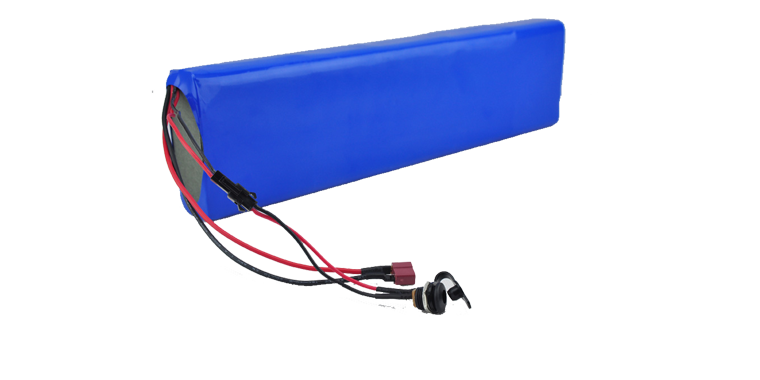

This 36V lithium-ion battery pack has a 10S5P configuration with 10Ah (amp-hours) capacity.
18650 lithium-ion battery packs are constructed by spot-welding 18650 cylindrical cells in serial or parallel. The resultant battery has high power density and cycle life with low cost compared to various other power choices. Cylindrical cell layouts likewise show high reliability compared to various other layout alternatives.
The resultant 10S5P 50 x 18650 li-ion battery pack has a 36V 18650 battery specification.
The 10S5P battery pack specifications make it appropriate for e-bikes, power devices, consumer electronics, and also many various other applications.

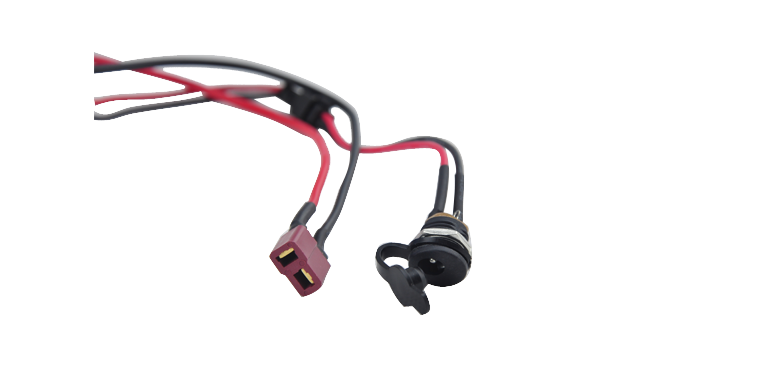

Assembly and testing is performed in our facility in Dongguan, China. PCM/BMS, connectors, tabbing, pack shape, as well as other demands, can be accommodated.
