105080-5000mah 3.7V Lipo Battery

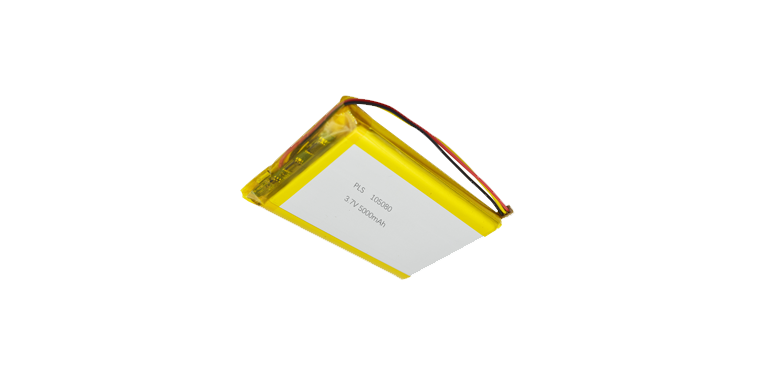

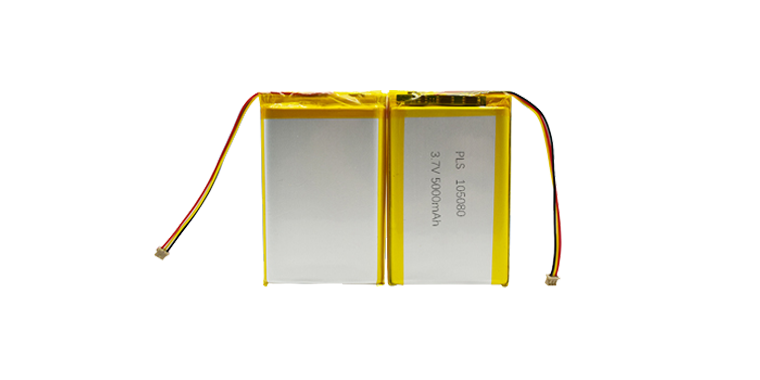

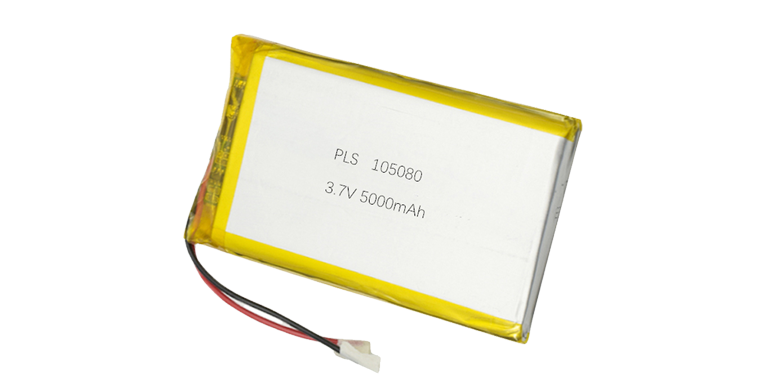

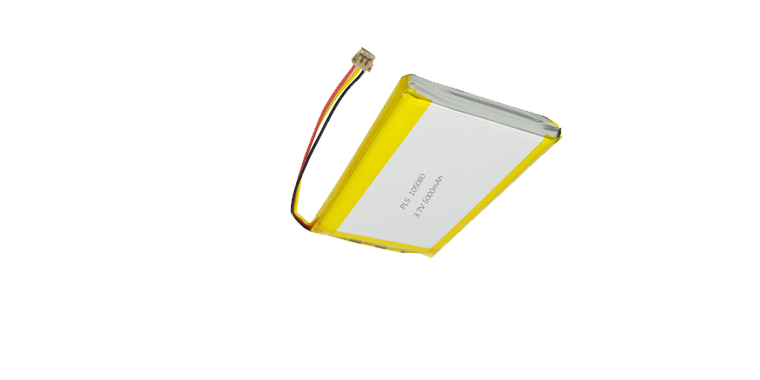

PLS105080 5000mah lipo battery is with 10.0*50*80mm(T*W*L) dimension, it is a rechargeable lithium polymer battery with 5000mah capacity, which is a customized produced model, used for high output electric devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.


PLS Battery, as one of lithium ion battery suppliers, is spaecialized in producing micro lipo battery with high performance and if you want to know more about battery li ion polymer, feel free to contact us.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 105080-5000mah 3.7V Lipo Battery

Item

Rating

Note

Model

PLS105080

10.0*50*80mm

Nominal Capacity

5000mAh

Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage

3.70V


Standard Charge Current

0.2C

0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 3.0V cut off.

Maximum Discharge Current

5000mA

1.0C, Continuous Current


15000mA

3.0C, Peak Current

Weight

98g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
