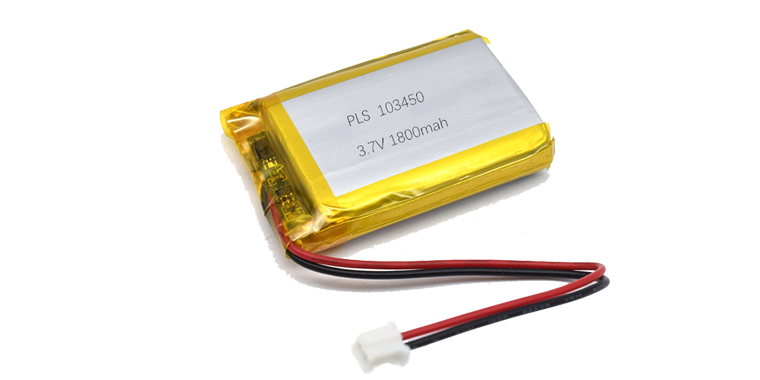

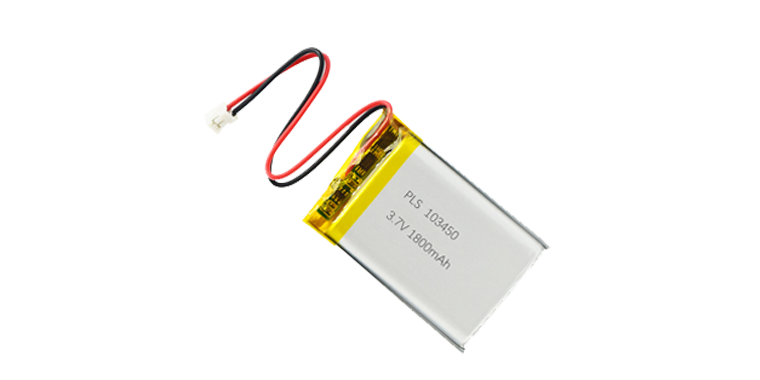

103450-2000mah 3.7V Lipo Battery

PLS103450 2000mah lipo battery is with 10.0*34*50mm(T*W*L) dimension, it is a rechargeable lithium polymer battery with 1800mah capacity, usually can be 2000mah. 3.7 v lipo battery 2000mah is a common produced model, usually with stock. Your requirements of customizing size, PCB, wire, connectors are welcomed.


PLS Battery, as a lithium ion battery factory, spares no efforts to promote the development of lipo battery industry and has made great progresses in the market of rechargeable lithium polymer battery. If you want to know more information, please contact us.

Batteries
Do You Need Help?
If you need assistance, have other questions,please contact us and request a quote.
Contact Us

Specification of 103450-2000mah 3.7V Lipo Battery

Item

Rating

Note

Model

PLS103450

10.0*34*50mm

Nominal Capacity

1800mAh

Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage

3.70V


Standard Charge Current

0.2C

0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current

0.2C

0.2C, 3.0V cut off.

Maximum Discharge Current

1800mA

1.0C, Continuous Current


5400mA

3.0C, Peak Current

Weight

35g


Operating Temperature

0~45℃

Charge


-20~60℃

Discharge

Storage Temperature

-20~45℃

1month


-20~35℃

3month


-20~20℃

1year

Application

Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...


Relate Lithium Polymer Batteries

Start Now
Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
