055085-3800mah 3.7V Lipo Battery

Name: 055085-3800mah 3.7V Lipo Battery
Brand: PLS Battery Co., Ltd.

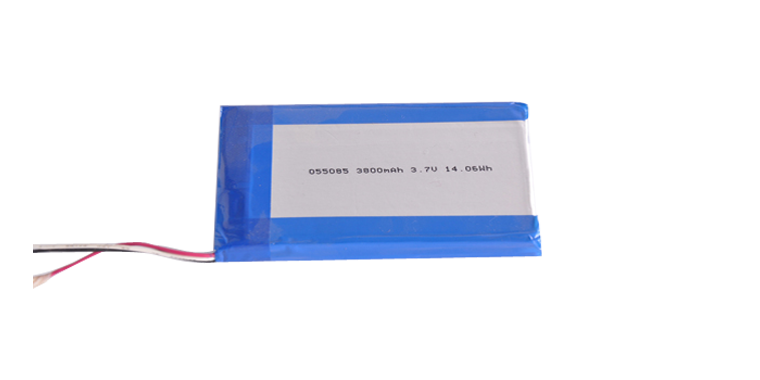

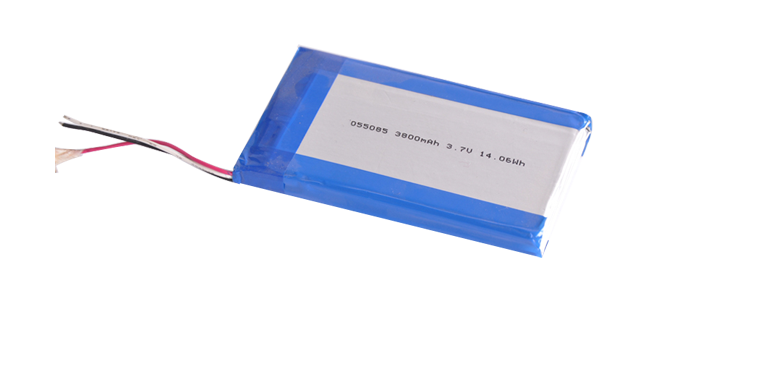

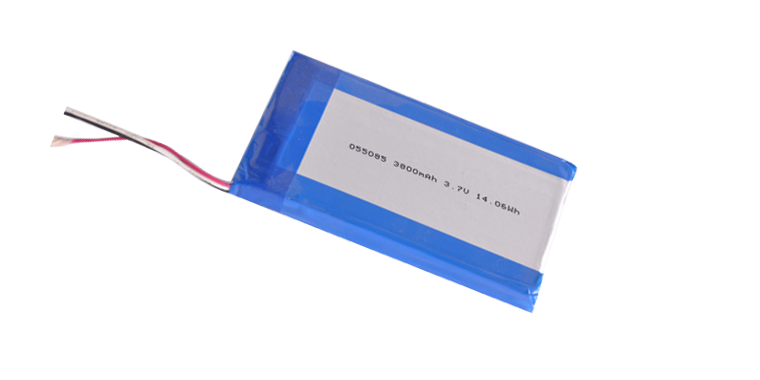

PLS055085-2P is assembled with 055085(5.0*50*85mm) (T*W*L) 3.7V 1900mah battery cells, it is a rechargeable lithium-polymer battery pack with 3800mah capacity, which is a customized produced model, used for high output electric devices. Your requirements of customizing size, PCB, wire, connectors are welcomed.

In our lithium polymer batteries factory, the capacity of battery li ion polymer can be customized according to your needs. And PLS Battery, as one of lipo battery manufacturers, promises to offer satisfied services for customers.

GET A QUOTE

Datasheet Download

Specification of 055085-3800mah 3.7V Lipo Battery

Item	Rating	Note
Model	PLS055085-2P	5.05085mm(cell)
Nominal Capacity	3800mAh	Standard discharge, 0.2C discharge, 3.0V cut-off
Nominal Voltage	3.70V
Standard Charge Current	0.2C	0.2C, 4.20V (CC-CV) 0.03C cut off.
Standard Discharge Current	0.2C	0.2C, 3.0V cut off.
Maximum Discharge Current	3800mA	1.0C, Continuous Current
	11400mA	3.0C, Peak Current
Weight	76g
Operating Temperature	0~45℃	Charge
	-20~60℃	Discharge
Storage Temperature	-20~45℃	1month
	-20~35℃	3month
	-20~20℃	1year
Application	Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards...
